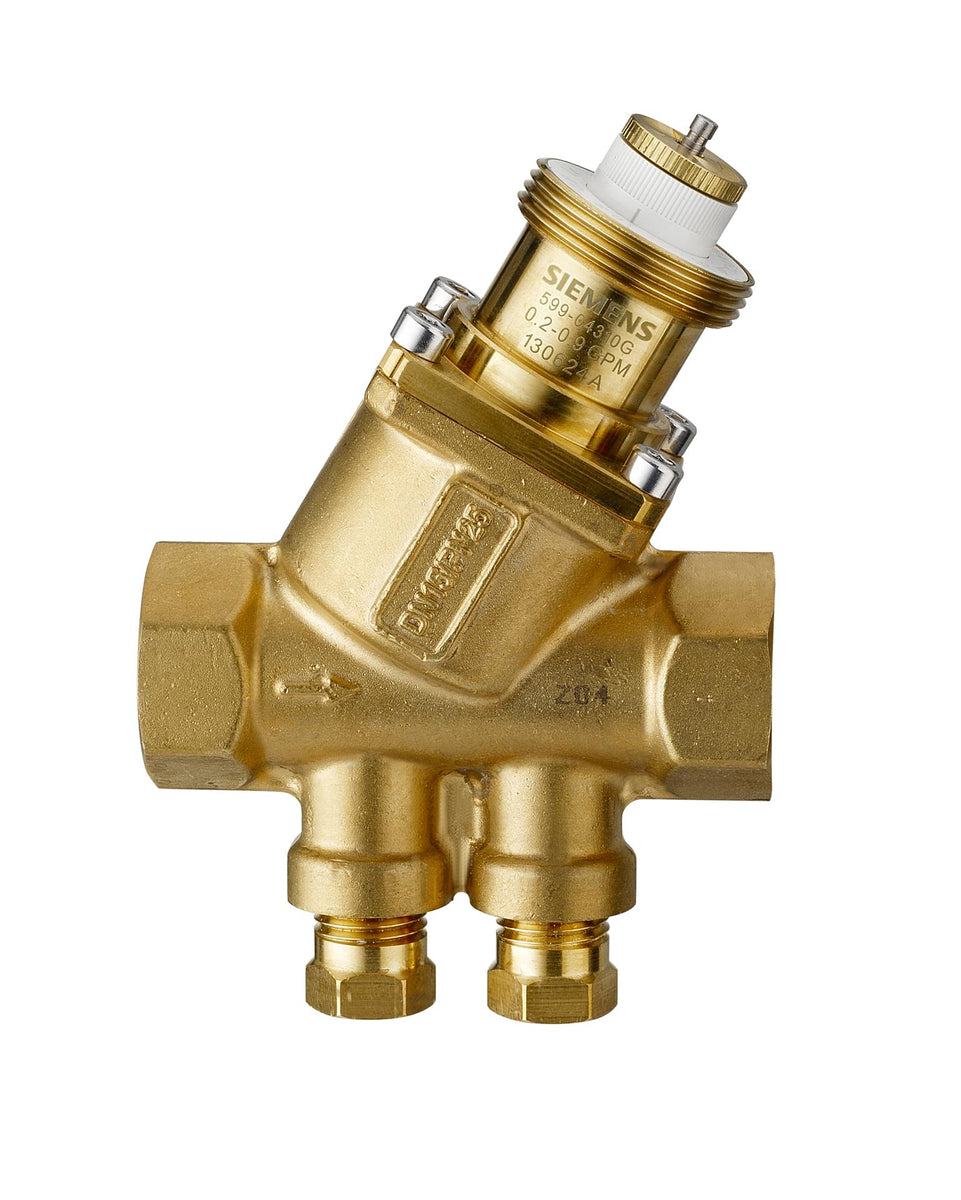

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-2
Documents and manuals
Overview
Details for 599-04322-2
3/4" PICV 2 GPM NO by Siemens Building Technology [sku] is a high-performance pressure-independent control valve designed for precise flow control in hydronic heating and cooling systems. This valve features a compact and durable design, ensuring reliable operation in demanding applications.
The Siemens 599-04322-2 PICV offers exceptional flow control with a capacity of 2 GPM and a flow rate range of 0.1 to 2.0 GPM. Its pressure-independent design maintains a constant flow rate regardless of pressure fluctuations in the system, ensuring optimal performance and energy efficiency.
This valve is constructed from high-quality materials, including a brass body and stainless steel internal components, providing excellent corrosion resistance and longevity. Its compact design simplifies installation and integration into existing systems. Additionally, the 599-04322-2 PICV is suitable for use with various pipe sizes and connection types, offering versatility in system design.
Our HVAC supply store has the best prices and fast shipping for your products!
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 2 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
