599-04321-4.5 | 599-04321-4.5, 1/2 PICV, 4.5 GPM NO | Siemens Building Technology

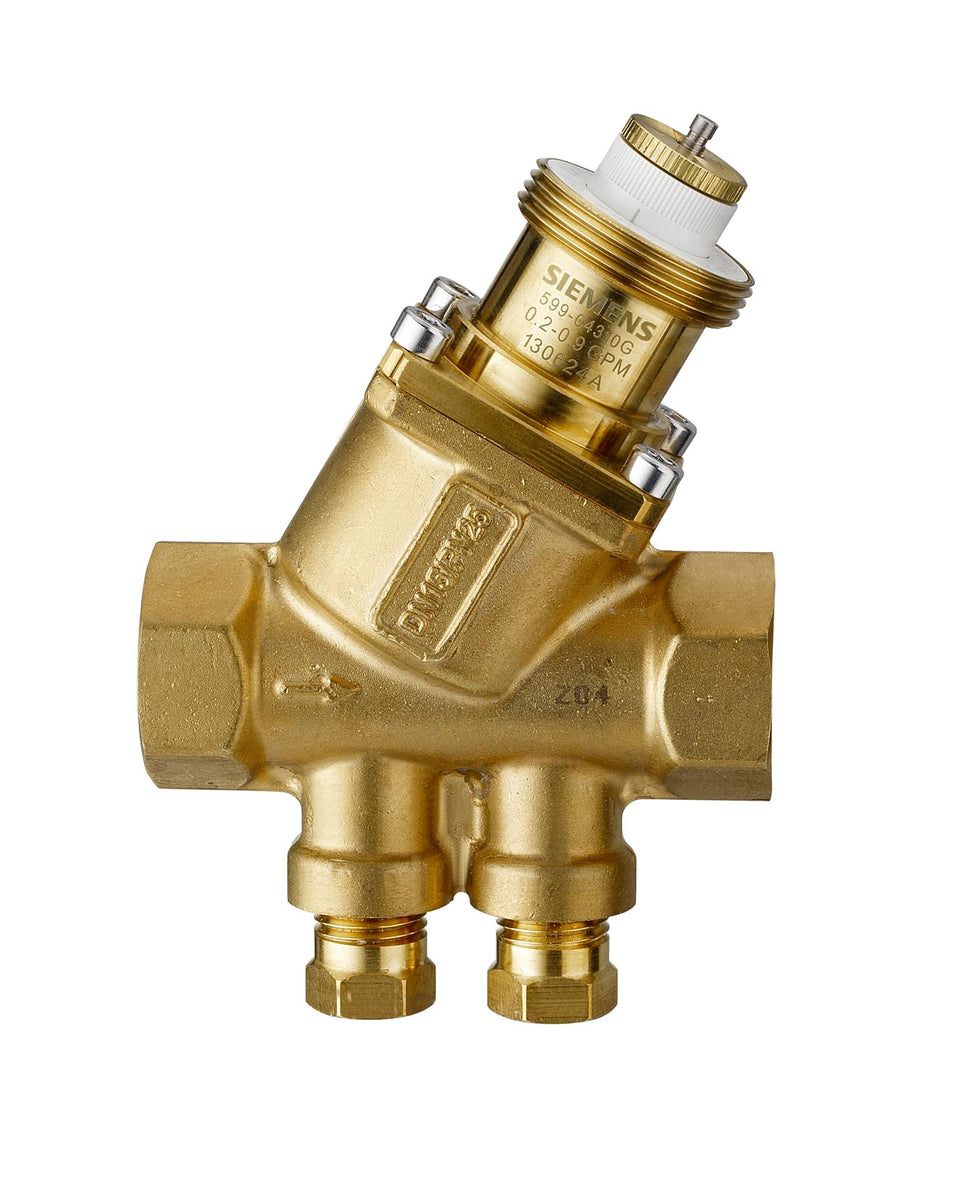

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04321-4.5
Documents and manuals
Overview
Details for 599-04321-4.5
The Siemens Building Technology 1/2" PICV 4.5 GPM NO is a premium-quality pressure-independent control valve designed for precise flow control in hydronic systems. Its compact design and rugged construction make it an ideal choice for commercial and industrial applications. With a flow rate of 4.5 GPM, this valve provides reliable and consistent flow regulation, ensuring optimal system performance. The pressure independence of the valve allows for stable flow rates regardless of system pressure fluctuations, ensuring efficient operation over a wide range of operating conditions. Additionally, the valve's rugged construction and durable materials provide long-lasting performance and reliability in demanding environments. Our HVAC supply store offers the Siemens Building Technology 1/2" PICV 4.5 GPM NO at competitive prices and provides fast shipping to minimize downtime.
Specifications
- Valve Size
- 0.5 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 5.8 gpm
- DN
- 15
- Min GPM
- 1 gpm
- Preset GPM
- 4.5 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 200 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5 mm
- Close-off Pressure
- 200 psi
