599-04321-1.5 | 599-04321-1.5, 1/2 PICV, 1.5 GPM NO | Siemens Building Technology

Siemens Building Technology | 599-04321-1.5

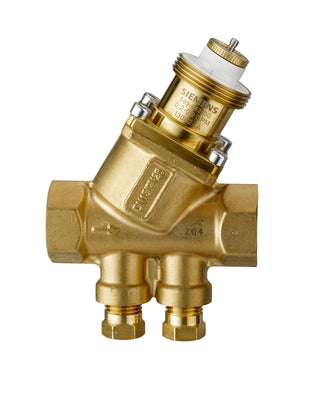

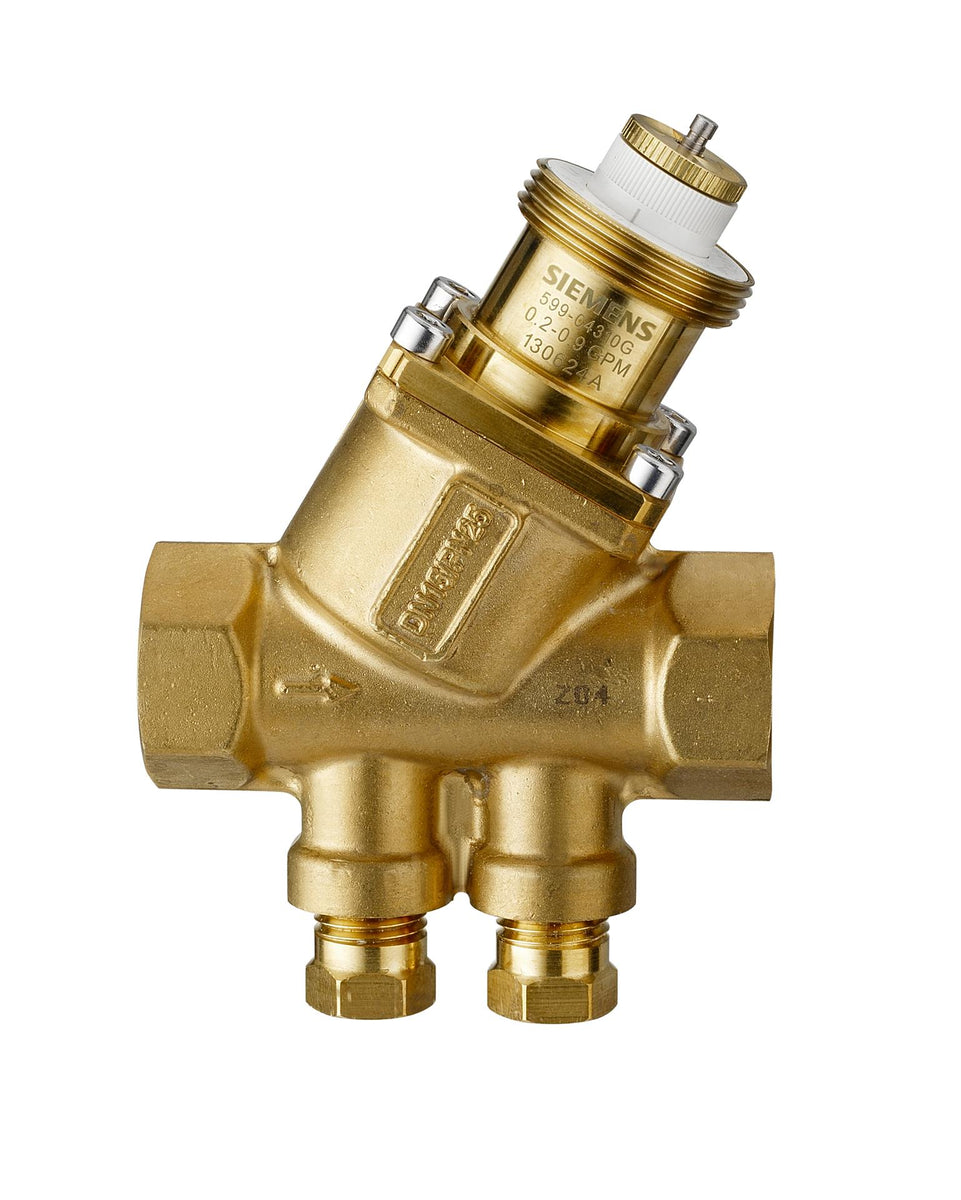

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04321-1.5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04321-1.5 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04321-1.5

1/2" PICV 1.5 GPM NO: 599-04321-1.5 from Siemens Building Technology. This Pressure Independent Control Valve (PICV) is designed for precise flow control in hydronic systems. Engineered with a flow rate of 1.5 gallons per minute (GPM) and a nominal diameter of 1/2 inch, it ensures optimal system performance and energy efficiency. Constructed from high-quality materials, this PICV offers durability and reliability in demanding industrial environments. Upgrade your hydronic system with Siemens Building Technology's 1/2" PICV 1.5 GPM NO and experience enhanced flow control, reduced energy consumption, and trouble-free operation. Our HVAC supply store offers competitive prices and fast shipping on this exceptional product.

Specifications

Valve Size: 0.5 in
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Trim Material: Brass
Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 5.8 gpm
DN: 15
Min GPM: 1 gpm
Preset GPM: 1.5 gpm
Pressure Class: ANSI 250
Leakage rate: ANSI Class IV (0.01%) @ 200 psi
Leakage rate, class: ANSI Class IV
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
Close-off Pressure: 200 psi
