599-04315-15 | PICV, 1-1/2 inch, Normally Open, 15 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04315-15

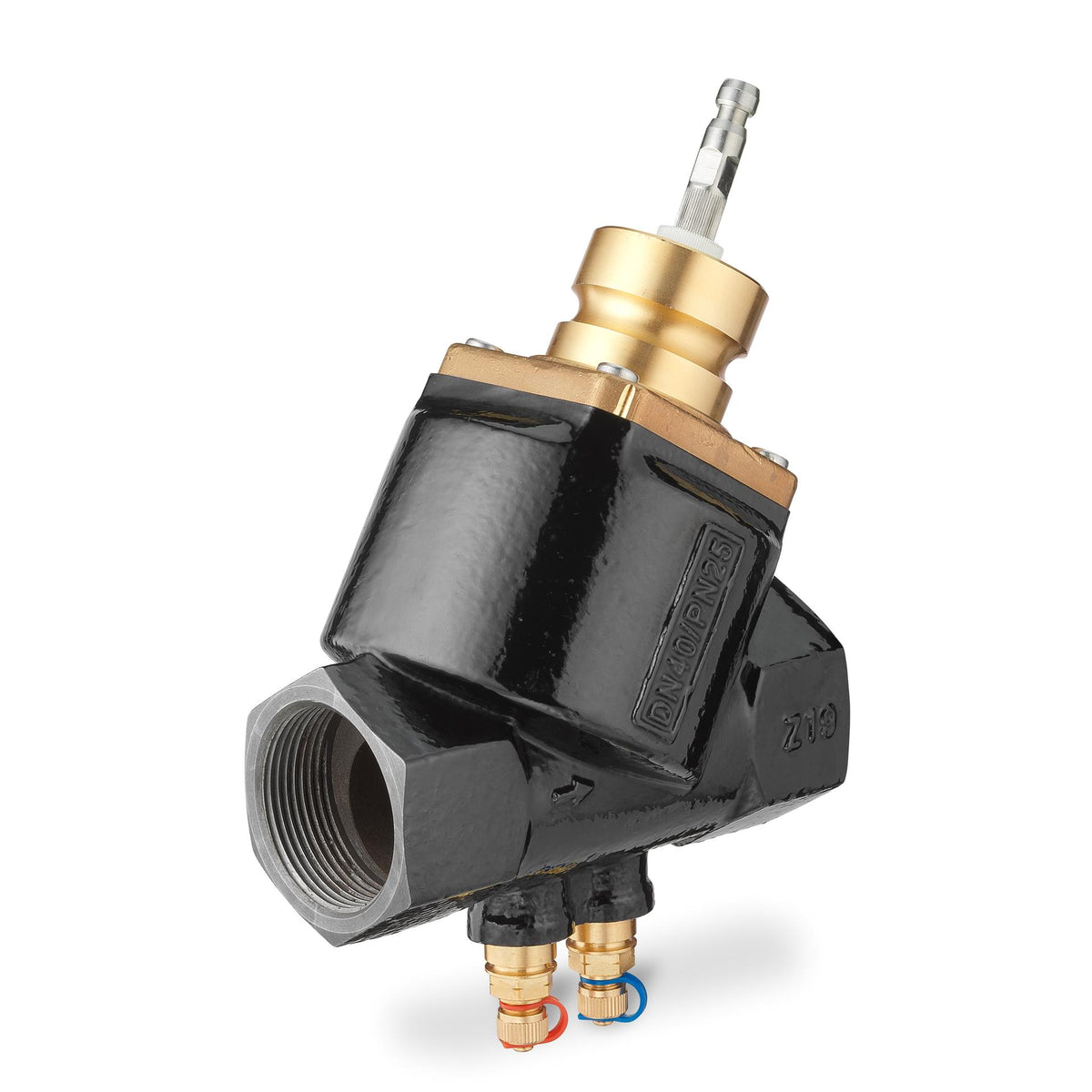

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04315-15

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04315-15 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04315-15

1 1/2" PICV 15 GPM NO: A Pressure Independent Control Valve (PICV) regulates the flow of water in heating and cooling systems, ensuring optimal performance and energy efficiency. This 1 1/2" PICV is designed to handle flow rates up to 15 GPM and is manufactured by Siemens Building Technology, known for its reliability and innovation in the industry. Its durable construction and precise control capabilities make it an ideal choice for commercial and industrial applications. Our HVAC supply store - We offer the best prices and fast shipping for your products!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
DN: 40
Min GPM: 10 gpm
Preset GPM: 15 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.54 x 5.47 in
