599-04314-18 | PICV, 1-1/4 inch, Normally Open, 18 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04314-18

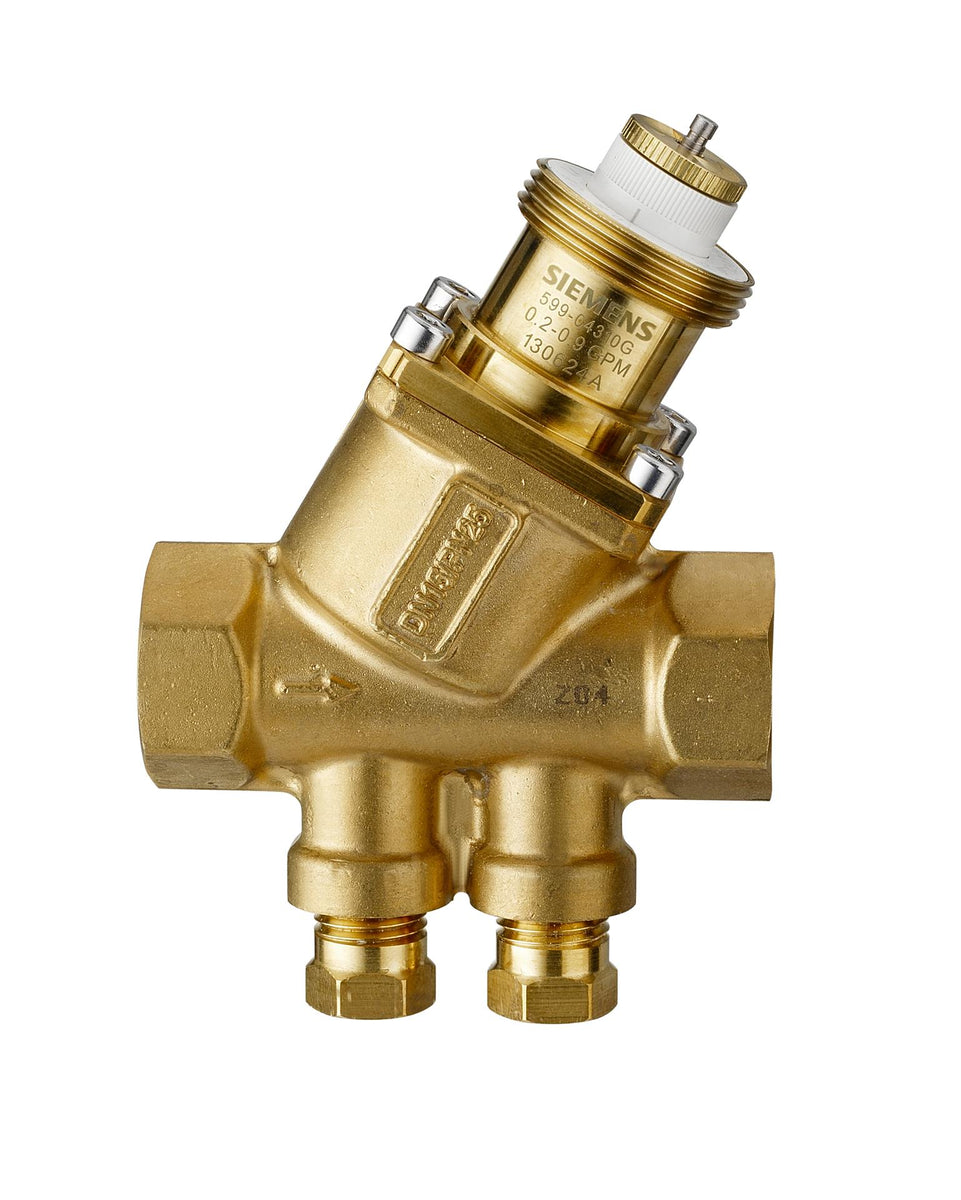

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04314-18

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04314-18 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04314-18

1.25" N/O 18GPM MAX PICVThe Siemens Building Technology 599-04314-18 is a 1.25" normally open pressure independent control valve (PICV) with a maximum flow rate of 18 GPM. It is designed for use in hydronic heating and cooling systems and is ideal for controlling the flow of water through fan coils, unit ventilators, and other terminal units. The valve is made of brass and has a stainless steel stem and seat. It is rated for a maximum pressure of 150 psi and a maximum temperature of 250Â°F. The valve is also lead-free and meets all applicable standards. The 599-04314-18 is a reliable and efficient valve that is easy to install and maintain. It is a great choice for use in any hydronic heating and cooling system.Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 18 gpm
DN: 32
Min GPM: 3 gpm
Preset GPM: 18 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5.5 mm
Dimensions (W x H x D): 2.56 x 5.49 x 4.17 in
