599-04314-13 | PICV, 1-1/4 inch, Normally Open, 13 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04314-13

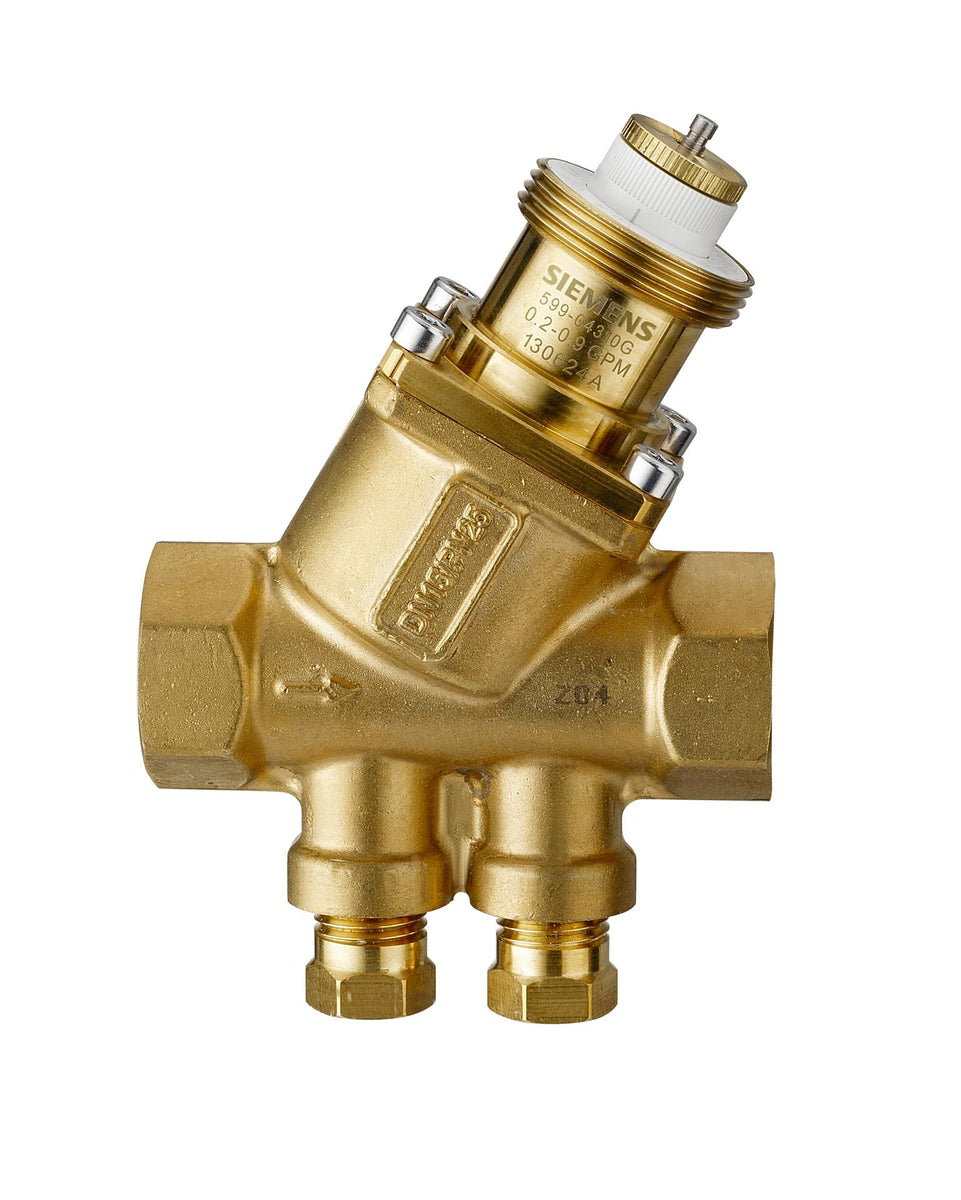

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04314-13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04314-13 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04314-13

1 1/4" PICV 13 GPM NO: This Pressure Independent Control Valve (PICV) is manufactured by Siemens Building Technology and boasts a flow rate of 13 Gallons Per Minute (GPM) at a pressure of 1 1/4 inches. Its primary application lies in controlling the flow of hot or chilled water within heating, ventilation, and air conditioning (HVAC) systems. The valve's advanced design ensures precise flow control, contributing to energy efficiency and optimal system performance. Our HVAC supply store offers this high-quality PICV at competitive prices, backed by fast shipping. Choose us for your industrial and maintenance needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 18 gpm
DN: 32
Min GPM: 3 gpm
Preset GPM: 13 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5.5 mm
Dimensions (W x H x D): 2.56 x 5.49 x 4.17 in
