599-04305-13 | PICV, 1-1/4 inch, 13 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04305-13

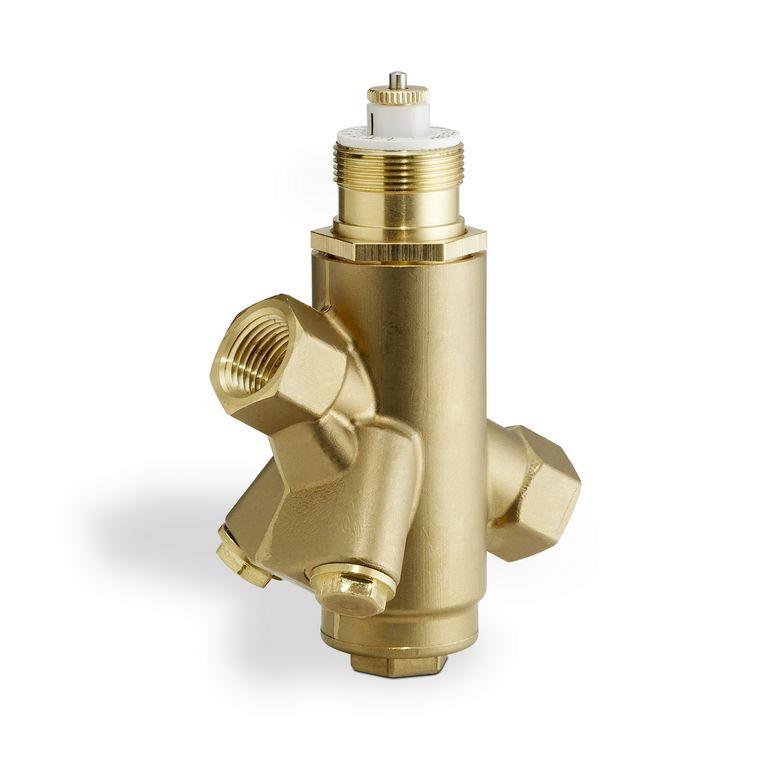

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04305-13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04305-13 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04305-13

1 1/4" PICV 13 GPM: Compact and DependableWater flow control is crucial in industrial and commercial applications. To meet these demands, Siemens Building Technology presents the 1 1/4" PICV 13 GPM, a compact and reliable pressure-independent control valve.This valve excel in precise flow regulation, ensuring optimal system performance. Its compact design allows for easy installation, even in space-constrained setups. The 13 GPM flow capacity makes it ideal for various applications, including HVAC, plumbing, and industrial processes.Additional Features:Resistant to corrosion and wearCompact and space-efficientReliable performance and long service lifeOrder now from our HVAC supply store for unbeatable prices and fast shipping.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Max GPM: 13.2 gpm
Min GPM: 2.5 gpm
Preset GPM: 13 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
