599-04304-4 | PICV, 1 inch, 4 GPM max. flow preset | Siemens Building Technology

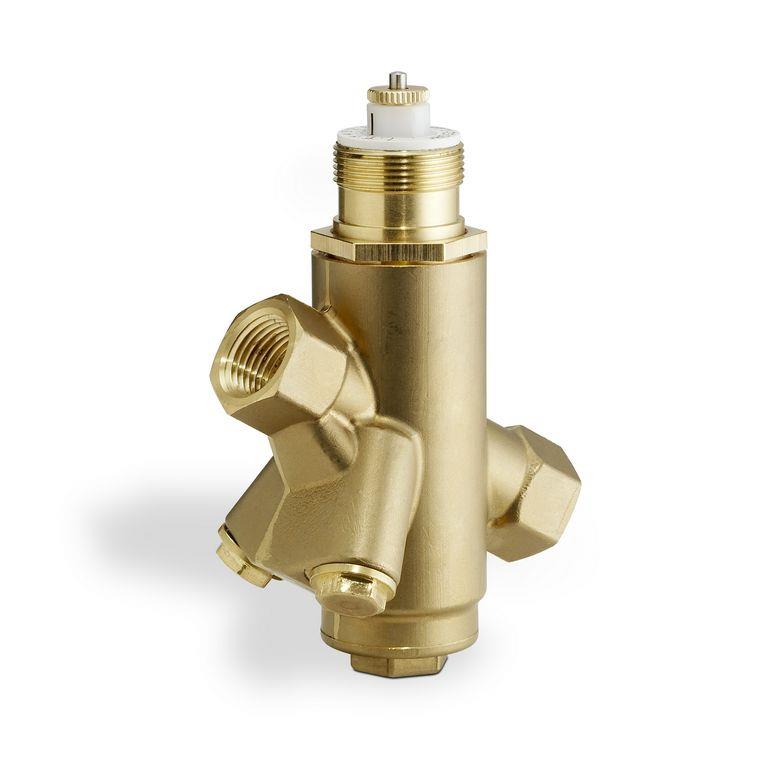

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04304-4
Documents and manuals
Overview
Details for 599-04304-4
1" PICV 4 GPM: Siemens Building Technology
Control the flow of water in your system with precision using the 1" PICV 4 GPM from Siemens Building Technology. This pressure-independent control valve ensures accurate flow rates, delivering optimal performance for heating and cooling systems.
With its rugged construction and durable materials, this valve is designed to withstand the demands of industrial and commercial applications. Its 1-inch diameter and 4-gallon-per-minute flow capacity make it an ideal choice for a wide range of flow control needs.
Key Features:
1-inch diameter for high flow capacity
4-gallon-per-minute flow rate
Pressure-independent control for consistent flow
Robust design for durability and reliability
Ideal for heating and cooling systems in industrial and commercial applications
Shop our HVAC supply store now for the best prices and fast shipping on the 1" PICV 4 GPM from Siemens Building Technology, your trusted source for industrial and commercial HVAC solutions.
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8.9 gpm
- Min GPM
- 1 gpm
- Preset GPM
- 4 gpm
- Leakage rate
- ANSI Class IV (0.01%)
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5 mm
