599-04301-7.5 | PICV, 1/2 inch, 7.5 GPM max. flow preset | Siemens Building Technology

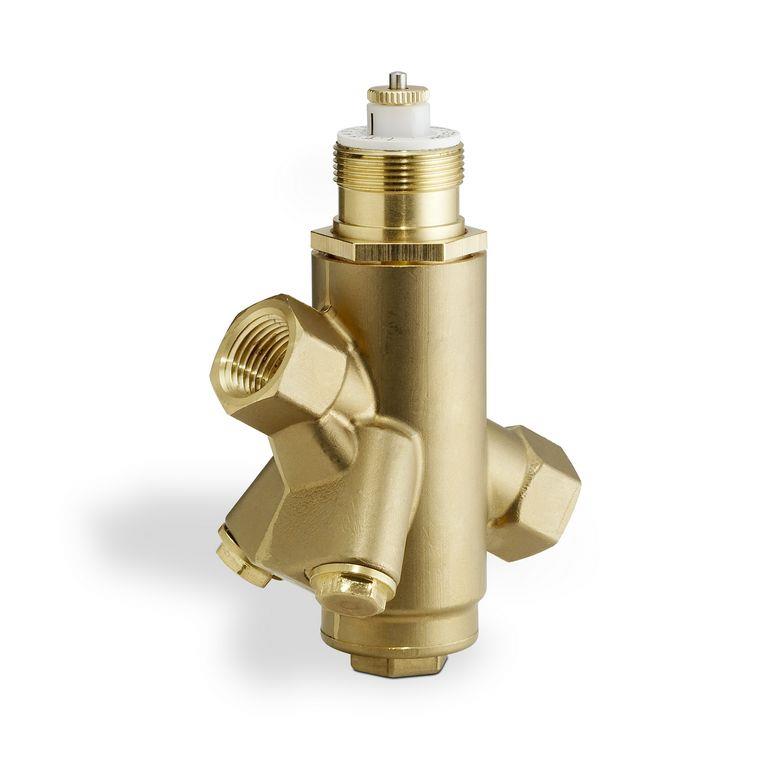

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04301-7.5
Documents and manuals
Overview
Details for 599-04301-7.5
1/2" Pressure Independent Control Valve (PICV) with 7.5 GPM flow capacity from Siemens Building Technology. This PICV is designed to maintain a constant flow rate in HVAC systems, regardless of pressure fluctuations. The pre-set flow rate of 7.5 GPM ensures optimal system performance and energy efficiency. The valve body is made of durable brass for corrosion resistance and longevity. It features a compact design, making it suitable for installations where space is limited. Other key features include a manual override for precise flow adjustment and a tamper-proof cap to prevent unauthorized changes. The Siemens PICV is ideal for use in commercial and industrial applications, including office buildings, schools, and hospitals. Our HVAC supply store offers the best prices and fast shipping for your Siemens Building Technology products!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 7.5 gpm
- Min GPM
- 1 gpm
- Preset GPM
- 7.5 gpm
- Leakage rate
- ANSI Class IV (0.01%)
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5 mm
