599-04301-4.5 | PICV, 1/2 inch, 4.5 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04301-4.5

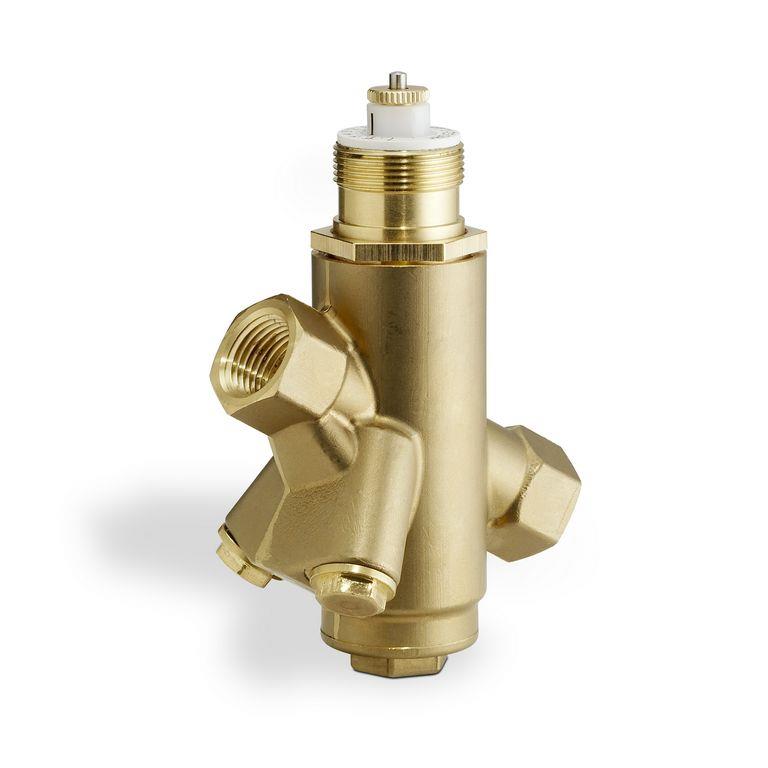

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04301-4.5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04301-4.5 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04301-4.5

1/2" Pressure Independent Control Valve (PICV) - 4.5 GPM: The Siemens Building Technology 599-04301-4.5 PICV is a pressure-independent control valve designed for precise flow control in hydronic heating and cooling systems. With a flow rate of 4.5 GPM, this PICV effectively regulates water flow to maintain desired temperatures, ensuring optimal system performance and energy efficiency. Its compact design and durable construction make it a reliable solution for industrial applications. Shop now at our HVAC supply store for the best prices and fast shipping!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Max GPM: 7.5 gpm
Min GPM: 1 gpm
Preset GPM: 4.5 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
