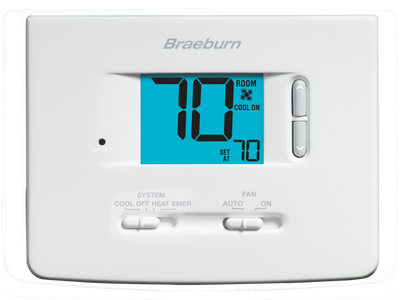

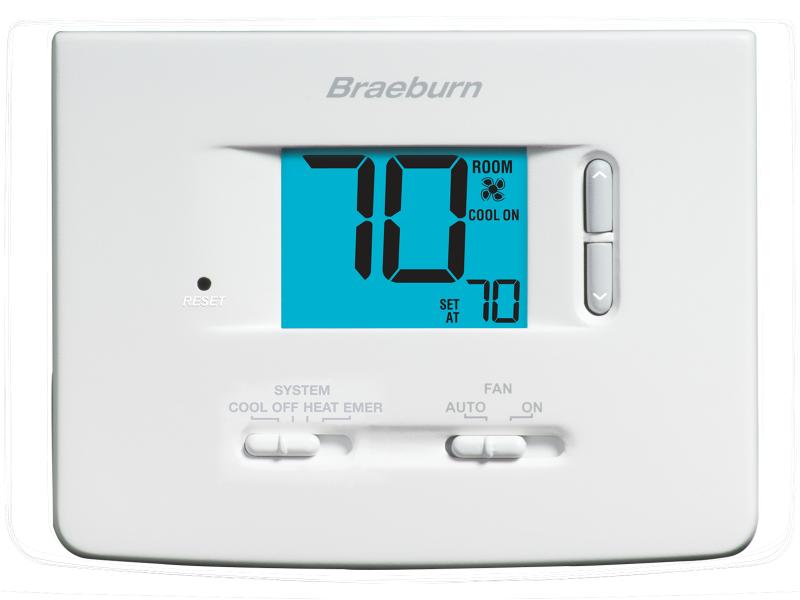

1220NC | Builder Non-Programmable Thermostat 2H / 1C | BRAEBURN

MPK-1220NC Braeburn Builder Thermostat: Control Comfort with Precision The MPK-1220NC Builder Thermostat by Braeburn offers exceptional temperature control for industrial and commercial applications. This 2h/1c non-programmable thermostat replaces the earlier 1200NC model, providing upgraded performance and reliability. Featuring a compact design, the MPK-1220NC easily fits into tight spaces. Its intuitive interface and clear display make it easy to set and monitor temperatures. The non-programmable operation ensures consistent temperature control without the need for complex programming. Built to withstand demanding environments, this thermostat features a rugged construction and reliable components. Its advanced sensing technology ensures accurate temperature readings, maintaining optimal comfort levels. Our HVAC supply store provides the MPK-1220NC Builder Thermostat at competitive prices, backed by our commitment to fast shipping and exceptional customer service. Choose Our HVAC supply store for your industrial and maintenance needs.

Features

• Large 2 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Adjustable Temperature Differential
• Compressor Short Cycle Protection
• Separate O & B Terminals
• Auxiliary Heat Indicator
• Low Battery Indication
• ESD Guard Electronic Circuitry
• Front Access Reset Button
• F° / C° Switch
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Architectural Specifications

The digital non-programmable thermostat shall be a Braeburn® model number 1220NC, 3.62” high x 4.72” wide x 1.38” deep, powered independently with either 24 VAC or two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional or heat pump systems with up to two stages of heating and one stage of cooling and heat pump systems with one compressor and up to one auxiliary stage. The thermostat shall have a bright blue backlight display and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, adjustable temperature limits and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.
