500 | Mechanical Megaswitch 1H / 1C Gas/Elec | BRAEBURN

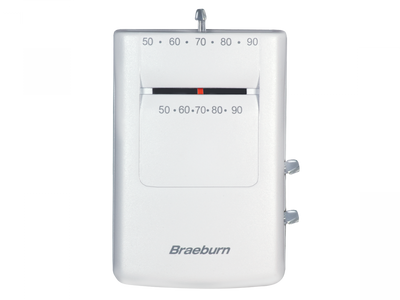

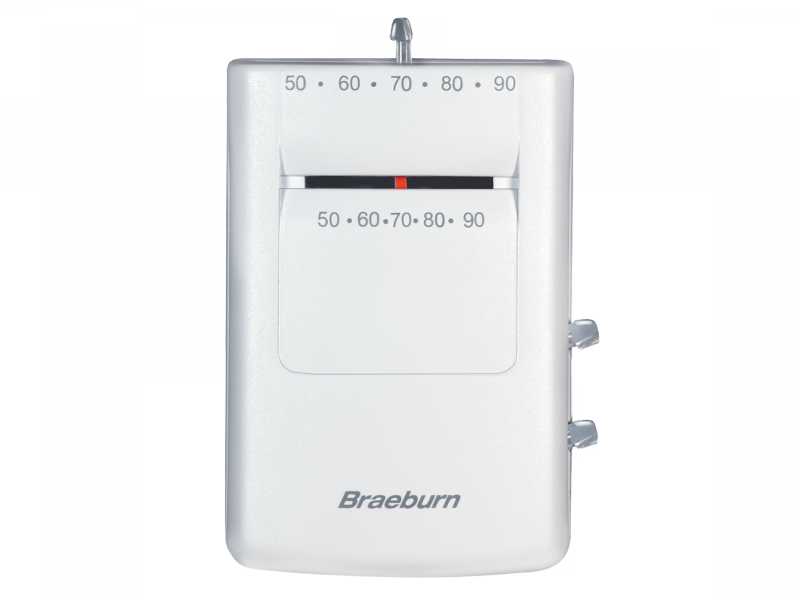

MPK-500-Braeburn Millivolt Mechanical Thermostat This reliable 24v/Millivolt mechanical Mercury-free thermostat provides precise temperature control for conventional or heat pump systems. It effectively manages indoor temperatures within a range of 50-90F, ensuring optimal comfort levels. The 1H-1C configuration allows for simple installation and compatibility with various heating and cooling systems. The MPK-500-Braeburn thermostat is designed for optimal performance and durability. Its robust construction ensures longevity in demanding industrial environments. The compact design enables easy installation in tight spaces. The large, easy-to-read display provides clear temperature readings for convenient monitoring. Key Features: - 24v/Millivolt operation - Mercury-free design - 1H-1C configuration - Temperature range of 50-90F - Large, clear display Benefits: - Precise temperature control - Mercury-free operation for safety - Easy installation and compatibility - Durable construction for long service life - Convenient temperature monitoring Shop now at our HVAC supply store for the best prices and fast shipping on your MPK-500-Braeburn Millivolt Mechanical Thermostat. Enhance your industrial operations with this reliable and efficient temperature control solution!

Features

• Dependable Switch Performance
• Environmentally Safe – Mercury-Free
• Integrated Sub-Base and Front Mounted Wiring Terminals Helps Make Installation Easy
• Separate O & B Terminals (Model 500 Only)
• Plated Terminals Reduce Corrosion
• No Leveling Required During Installation • Heavy Duty Heat Anticipator

Architectural Specifications

The megaswitch® mechanical thermostat shall be a Braeburn®, model number 500 or 505, 4.60” high x 3.13” wide x 1.25” deep. The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems*. The thermostat shall have a separate sub-base and front mounted wiring terminals for trouble free installation. Temperature control range shall be between 50° and 90° F (10° and 32° C), heat anticipation of 0.15 to 1.2 amps, humidity range between 5% and 95% relative humidity. The thermostat shall be mercury free, have plated terminals to prevent corrosion and require no leveling during installation. The thermostat can be mounted to a vertical junction box.
