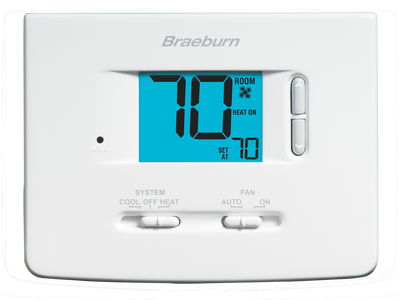

1020NC | Builder Non-Programmable Thermostat 1H / 1C | BRAEBURN

BRAEBURN MPK-1020NC Thermostat: A Reliable and Efficient Temperature Control Solution The BRAEBURN MPK-1020NC thermostat is a high-quality product engineered for industrial and commercial applications. This single-stage digital thermostat features a 24v/millivolt power supply, providing versatility for various electrical systems. Its non-programmable design ensures simple and straightforward operation, making it ideal for maintaining consistent temperatures in a range of settings. With a temperature set point limit of 45-90F, the MPK-1020NC offers precise control over heating and cooling systems. Its 1H-1C configuration enables compatibility with most HVAC systems, including heating and cooling units. The thermostat replaces the outdated 1000NC model, providing an upgraded solution with enhanced features and reliability. Shop our HVAC supply store today for the best prices and fast shipping on the BRAEBURN MPK-1020NC thermostat and other industrial electrical supplies. Our commitment to quality and customer satisfaction ensures peace of mind for all your industrial and commercial projects.

Features

• Large 2 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Compressor Short Cycle Protection
• Separate O & B Terminals
• Low Battery Indication
• ESD Guard Electronic Circuitry
• Front Access Reset Button
• F˚ / C˚ Switch
• Gas / Electric Fan Switch
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Architectural Specifications

The digital non-programmable thermostat shall be a Braeburn® model number 1020NC, 3.62” high x 4.72” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display, adjustable temperature limits and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32°C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.
