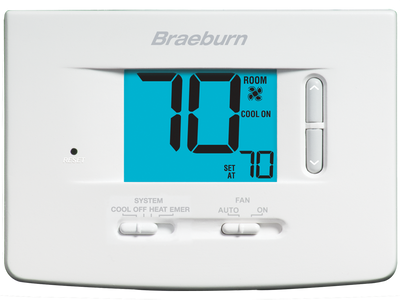

1220 | Economy Non-Programmable Thermostat 2H / 2C | BRAEBURN

Braeburn MPK-1220 24v/Millivolt Digital Multi Stage Economy Series Non Programmable Thermostat: 2H/2C 45-90F The Braeburn MPK-1220 thermostat is a reliable and cost-effective solution for controlling heating and cooling systems in commercial and industrial settings. This digital multi-stage thermostat offers precise temperature control and energy-saving features. Featuring a 2H/2C configuration, the MPK-1220 allows for independent control of two heating and two cooling stages, ensuring optimal comfort and efficiency. Its wide temperature range of 45-90°F provides flexibility for a variety of applications. The intuitive digital display and user-friendly interface make it easy to set and adjust temperature settings, while the non-programmable design ensures consistent operation without the need for complex programming. Constructed with durable materials, the MPK-1220 is built to withstand the rigors of industrial environments. Its compact design allows for easy installation in tight spaces. Our HVAC supply store offers the Braeburn MPK-1220 thermostat at competitive prices with fast shipping. We are your trusted source for quality industrial supplies, providing expert support and the best prices. Order now and experience the reliability and efficiency of the Braeburn MPK-1220 thermostat!

Features

• Large 3 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Separate O & B Terminals
• Compressor Short Cycle Protection
• Adjustable Temperature Differentials
• Auxiliary Heat Indicator
• Low Battery Indication
• ESD Guard Electronic Circuitry
• Front Access Reset Button
• F˚ / C˚ Switch
• Gas / Electric Fan Switch
• Mount to Horizontal Box
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Architectural Specifications

The digital non-programmable thermostat shall be a Braeburn®, model number 1220, 3.70” high x 5.16” wide x 1.38” deep, powered independently with either 24 VAC or two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional systems with up to two stages of heating and two stages of cooling, heat pump systems with one compressor and up to one auxiliary stage. The thermostat shall have a bright blue backlight display, adjustable temperature limits, and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.
