ZONE325S-80+ZONE24NC | Zone Valve | 1
$237.60
Brand: BelimoSKU: ZONE325S-80+ZONE24NC
List Price
$528.00
$237.60
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

ZONE325S-80+ZONE24NC | Zone Valve | 1" | 3 Way | 8 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Belimo | ZONE325S-80+ZONE24NC

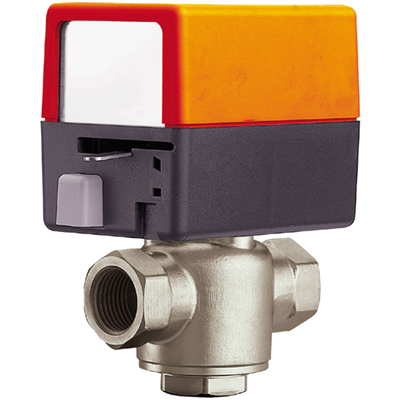

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZONE325S-80+ZONE24NC

Documents and manuals

Belimo ZONE325S-80+ZONE24NC Documents

Overview

Details for ZONE325S-80+ZONE24NC

Zone Valve | 1" | 3 Way | 8 Cv | w/ Spg Rtn | 24V | On/Off

Zone Valve | 1" | 3 Way | 8 Cv | w/ Spg Rtn | 24V | On/Off

Application

This valve is typically used on fan coil units, baseboards or other hydronic applications where fail safe operation on 2-wire control is required. This valve is suitable for use in a hydronic system with variable or constant flow. This valve is designed to fit in compact areas where on/off or control is required using 24 VAC or 120 VAC.


Specifications

Valve specifications
Angle of Rotation
90
Cv
End Fitting
Sweat
Fluid
Chilled or hot water up to 50% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP20 NEMA 1
Electrical Connection
cable
Manual Override
Hand lever
Power Consumption (Running)
6.5 W
Running Time (Fail-safe)
<5 s
Voltage AC/DC
AC 24 V
