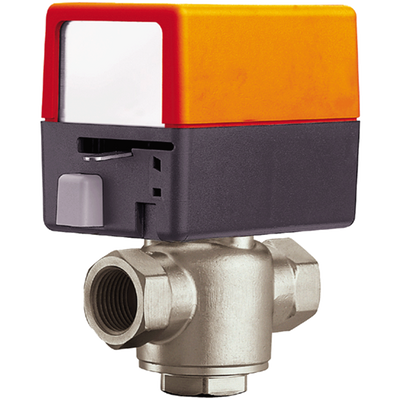

ZONE325N-80+ZONE120NC | Zone Valve | 1" | 3 Way | 8 Cv | w/ Spg Rtn | 120V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZONE325N-80+ZONE120NC
Documents and manuals
Belimo ZONE325N-80+ZONE120NC Documents
Overview
Details for ZONE325N-80+ZONE120NC
Zone Valve | 1" | 3 Way | 8 Cv | w/ Spg Rtn | 120V | On/Off
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 8
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 50% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- On/Off
- Degree of Protection
- IP20 NEMA 1
- Electrical Connection
- cable
- Manual Override
- Hand lever
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <5 s
- Voltage AC/DC
- AC 120 V
