ZONE320S-50+ZONE24NC-S | Zone Valve | 0.75" | 3 Way | 5 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

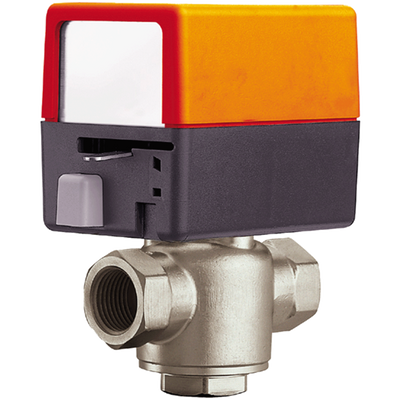

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZONE320S-50+ZONE24NC-S
Documents and manuals
Belimo ZONE320S-50+ZONE24NC-S Documents
Overview
Details for ZONE320S-50+ZONE24NC-S
Zone Valve | 0.75" | 3 Way | 5 Cv | w/ Spg Rtn | 24V | On/Off | SW
Zone Valve | 0.75" | 3 Way | 5 Cv | w/ Spg Rtn | 24V | On/Off | SW
Application
This valve is typically used on fan coil units, baseboards or other hydronic applications where fail safe operation on 2-wire control is required. This valve is suitable for use in a hydronic system with variable or constant flow.
This valve is designed to fit in compact areas where on/off or control is required using 24 VAC or 120 VAC
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 5
- End Fitting
- Sweat
- Fluid
- Chilled or hot water up to 50% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPST
- Control Type
- On/Off
- Degree of Protection
- IP20 NEMA 1
- Electrical Connection
- cable
- Manual Override
- Hand lever
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <5 s
- Voltage AC/DC
- AC 24 V
