ZONE315S-35+ZONE24NC-S | Zone Valve | 0.5" | 3 Way | 3.5 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

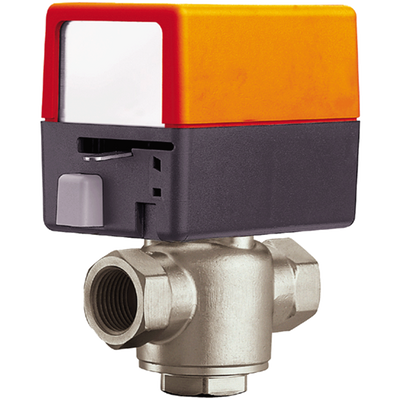

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZONE315S-35+ZONE24NC-S

Jump to: Documents Overview Specifications

Documents and manuals

Belimo ZONE315S-35+ZONE24NC-S Documents

Datasheet More Info

Overview

Details for ZONE315S-35+ZONE24NC-S

Zone Valve | 0.5" | 3 Way | 3.5 Cv | w/ Spg Rtn | 24V | On/Off | SW

Zone Valve | 0.5" | 3 Way | 3.5 Cv | w/ Spg Rtn | 24V | On/Off | SW

Application

This valve is typically used on fan coil units, baseboards or other hydronic applications where fail safe operation on 2-wire control is required. This valve is suitable for use in a hydronic system with variable or constant flow. This valve is designed to fit in compact areas where on/off or control is required using 24 VAC or 120 VAC.

Specifications

Item Number	ZONE315S-35+ZONE24NC-S
Brand	Belimo
Control Input	On/Off
Control Valves Type	Zone Valve
Cv / GPM	3.5 Cv
End Switch	Yes
Spring Return	Spring Return
Valve Size	0.5" - 3 Way
Voltage	24V
