TFB24-MFT | Damper Actuator | 22 in-lb | Spg Rtn | 24V | MFT | Belimo
$301.95
Brand: BelimoSKU: TFB24-MFT
List Price
$671.00
$301.95
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

TFB24-MFT | Damper Actuator | 22 in-lb | Spg Rtn | 24V | MFT | Belimo

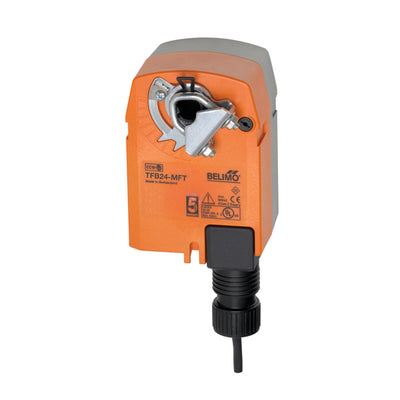

Belimo | TFB24-MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFB24-MFT
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo TFB24-MFT Documents

Datasheet Installation Instructions More Info

Overview

Details for TFB24-MFT

Damper Actuator | 22 in-lb | Spg Rtn | 24V | MFT

Application

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.

Default/Configuration

Default parameters for 2 to 10 VDC applications of the TF..-MFT actuator are assigned during manufacturing. If required, custom versions of the actuator can be ordered. The parameters are variable and can be changed by three means: Factory pre-set or custom configuration, set by the customer using PC-Tool software or the handheld ZTH US


Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
MFT/Programmable
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s /
Running Time range (Motor)
75...300 s
Safety Function
YES
Torque
22 in-lb [2.5 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Midwest Supply Us
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $507.60 each
$507.60 each
Belimo ZS-150 Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Midwest Supply Us
ZS-150 | Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Belimo $126.00 each
$126.00 each
Belimo ZS-101 Base plate for ZS-100. | Midwest Supply Us
ZS-101 | Base plate for ZS-100. | Belimo $25.65 each
$25.65 each
Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Midwest Supply Us
ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo $113.40 each
$113.40 each
Belimo ZK2-GEN Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Midwest Supply Us
ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo $36.00 each
$36.00 each
Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Midwest Supply Us
ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo $67.05 each
$67.05 each
