SY5-120MFT | Valve Actuator | Non-Spg | 120V | MFT | SW | NEMA 4H | Belimo

Belimo | SY5-120MFT

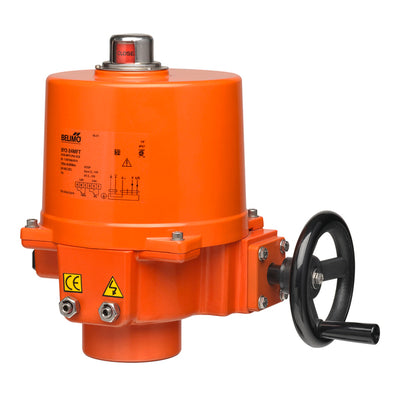

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SY5-120MFT

Documents and manuals

Belimo SY5-120MFT Documents

Overview

Details for SY5-120MFT

Valve Actuator | Non-Spg | 120V | MFT | SW | NEMA 4H

Application

SY Series actuators are fractional horsepower devices, and utilize full-wave power supplies. Observe wire sizing and transformer sizing requirements. Proportional models CANNOT be connected to Belimo direct coupled (AF, AM, GM…etc) actuator power supplies or any type of half-wave device. You MUST use a separate, dedicated transformer or power supply to power the SY actuator. Please do not connect other automation equipment to the dedicated SY supply source. You MUST use four wires (plus a ground) to control a proportional control SY actuator (See SY Wiring Section).


Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
300
Controllable Flow Range
Quarter turn mechanically limited
Cv
3517
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Valve Size
10" [250]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Hand wheel
Running Time (Motor)
28 s
Voltage AC/DC
AC 120 V
