SY4-110 | Valve Actuator | Non-Spg | 120V | On/Off | SW | NEMA 4H | Belimo

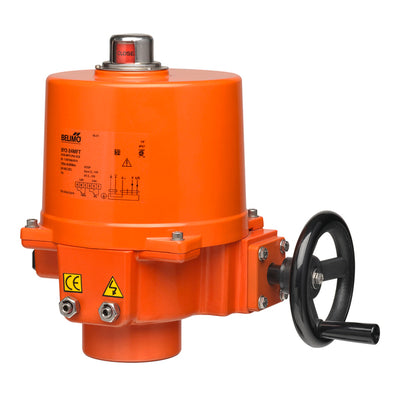

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SY4-110
Overview
Details for SY4-110
Valve Actuator | Non-Spg | 120V | On/Off | SW | NEMA 4H
SY Series actuators are fractional horsepower devices, and utilize full-wave power supplies. Observe wire sizing and transformer sizing requirements. Proportional models CANNOT be connected to Belimo direct coupled (AF, AM, GM…etc) actuator power supplies or any type of half-wave device. You MUST use a separate, dedicated transformer or power supply to power the SY actuator. Please do not connect other automation equipment to the dedicated SY supply source. You MUST use four wires (plus a ground) to control a proportional control SY actuator.
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Controllable Flow Range
- 90B0 rotation
- Cv
- 5340
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Potable water
- Manual Override
- Hand wheel
- Pattern
- 2-way
- Pressure Independent
- NO
- Product Type
- Combo
- Running Time (Motor)
- 19 s
- Valve Size
- 10" [250]
- Voltage AC/DC
- AC 120 V
