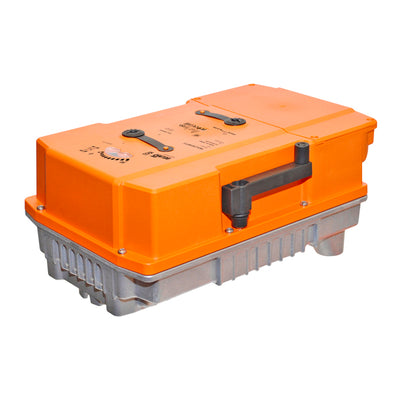

PRXUP-MFT-T | Valve Actuator | Non-Spring | 24-240V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PRXUP-MFT-T
Overview
Details for PRXUP-MFT-T
Valve Actuator | Non-Spring | 24-240V | MFT
PR Series valve actuators are designed with an integrated linkage and visual position indicators. Foroutdoor applications, the installed valve must be mounted with the actuator at or above horizontal. Forindoor applications the actuator can be in any location including directly under the valve.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 300
- Controllable Flow Range
- 75B0
- Cv
- 24Â
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35Â s / 90B0
- Torque
- 160Â Nm
- Voltage AC/DC
- ACÂ 24...240Â V / DCÂ 24...125Â V
