PRXUP-3-T-200 | Valve Actuator | Non-Spring | 24-240V | On/Off/Floating Point | for 8" BFV | Belimo

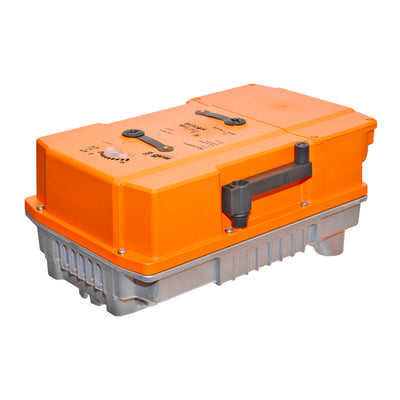

Belimo | PRXUP-3-T-200
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PRXUP-3-T-200

Documents and manuals

Belimo PRXUP-3-T-200 Documents


Details for PRXUP-3-T-200

Valve Actuator | Non-Spring | 24-240V | On/Off/Floating Point | for 8" BFV

The PR series actuator provides 90° of rotation and a visual indicator shows the position of the valve. The PR Series actuator uses a low power consumption brushless DC motor and is electronically protected against overload. A universal power supply is furnished to connect supply voltage in the range of AC 24...240 V and DC 24...125 V. Included is a smart heater with thermostat to eliminate condensation. Two auxiliary switches are provided; one set at 10° open and the other is field adjustable. Running time is field adjustable from 30...120 seconds by using the Near Field Communication (NFC) app and a smart phone. †Use 60°C/75°C copper wire size range 12...28 AWG, stranded or solid. Use flexible metal conduit. Push the listed conduit fitting device over the actuator’s cable to butt against the enclosure. Screw in conduit connector. Jacket the actuators input wiring with listed flexible conduit. Properly terminate the conduit in a suitable junction box. Rated impulse Voltage 4000 V. Type of action 1. Control pollution degree 3.


Valve specifications
Angle of Rotation
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
End Connection
Lug types
End Fitting
Chilled or hot water up to 60% glycol
Pressure Independent
Valve Size
8" [200]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
