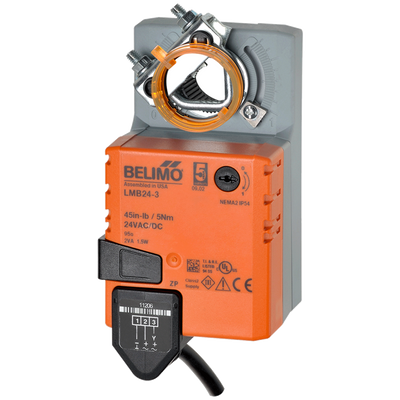

LMX24-3-X1 | Valve Actuator | Non-Spg | 24V | On/Off/Floating Point | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX24-3-X1
Documents and manuals
Belimo LMX24-3-X1 Documents
Overview
Details for LMX24-3-X1
Valve Actuator | Non-Spg | 24V | On/Off/Floating Point
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.2 W
- Power Consumption (Running)
- 1.5 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
