LHX24-SR-200 | Damper Actuator | 34 lbf | Non-Spg Rtn | 24V | Modulating | Belimo
$289.80
Brand: BelimoSKU: LHX24-SR-200
List Price
$644.00
$289.80
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

LHX24-SR-200 | Damper Actuator | 34 lbf | Non-Spg Rtn | 24V | Modulating | Belimo

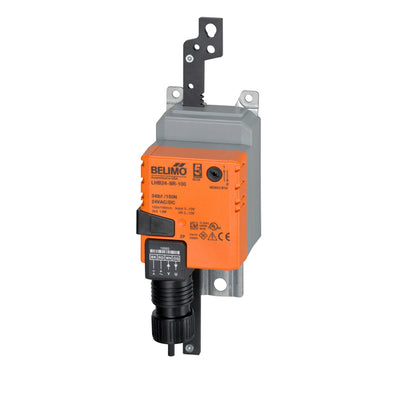

Belimo | LHX24-SR-200
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LHX24-SR-200
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo LHX24-SR-200 Documents

Datasheet Installation Instructions More Info

Overview

Details for LHX24-SR-200

Damper Actuator | 34 lbf | Non-Spg Rtn | 24V | Modulating

Operation Typical specification Product features For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication or master-slave applications.

Specifications

Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
150 N [35 lbf]
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
150 s / 100 mm
Safety Function
NO
Stroke
8" [200 mm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Midwest Supply Us
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $507.60 each
$507.60 each
Belimo Z-KSA 5/16" shaft clevis for LH. | Midwest Supply Us
Z-KSA | 5/16" shaft clevis for LH. | Belimo $33.75 each
$33.75 each
Belimo ZK6-GEN Cable for use with ZTH US to connect to SY actuators via RJ11 port. | Midwest Supply Us
ZK6-GEN | Cable for use with ZTH US to connect to SY actuators via RJ11 port. | Belimo $37.80 each
$37.80 each
Belimo ZK2-GEN Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Midwest Supply Us
ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo $36.00 each
$36.00 each
Belimo ZK1-GEN Cable for use with ZTH US to connect to diagnostic/programming socket. | Midwest Supply Us
ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo $77.40 each
$77.40 each
Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Midwest Supply Us
ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo $67.05 each
$67.05 each
