M9208-GGC-3 | ACT PROPORTIONAL 24VAC; 70LB-IN (8NM) SPRING RETURN ACT PROP AC/DC 24V 2 SWITCHES | Johnson Controls

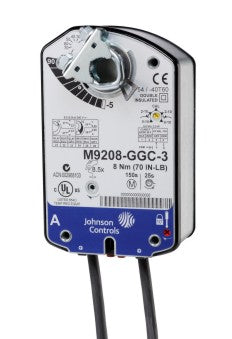

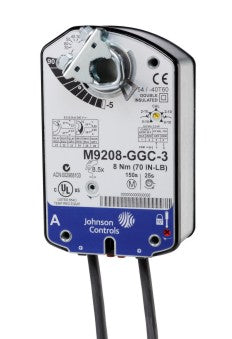

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9208-GGC-3
Documents and manuals
Johnson Controls M9208-GGC-3 Documents
Overview
Details for M9208-GGC-3
ACT PROPORTIONAL 24VAC; 70LB-IN (8NM) SPRING RETURN ACT PROP AC/DC 24V 2 SWITCHES
The M9208-GGx-x Series Proportional Electric Spring Return Actuators are direct-mount actuators that operate on AC/DC 24 V power. These bidirectional actuators do not require a damper linkage, and are easily installed on round shafts from 5/16 to 5/8 in. (8 to 16 mm) or square shafts from 1/4 to 1/2 in. (6 to 12 mm) using the standard shaft clamp included with the actuator. An optional M9208-600 Large Coupler Kit is available for round shafts from 1/2 to 3/4 in. (12 to 19 mm) or square shafts from 3/8 to 9/16 in. (10 to 14 mm).- Damper Actuator
- 24 VAC/VDC
- Proportional [0(2)..10 VDC]
- Spring Return
- 70 in-lb Torque
- 48 in. Appliance Cable
- 2 x SPDT
- 150 sec Runtime
- NEMA 2
- 0051 - 0075 IN-LB
Specifications
Item Number | M9208-GGC-3 |
Brand | Johnson Controls |
Actuator Type | Damper |
Category | Dampers & Actuators |
Control Input | Modulating |
End Switch | Yes |
Housing | NEMA 2 |
Section | Electric Actuators |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Electric Actuators |
Torque | 70 in-lb |
Voltage | 24V |
