GMB24-SR-X1 | Valve Actuator | Non-Spg | 24V | Modulating | Belimo

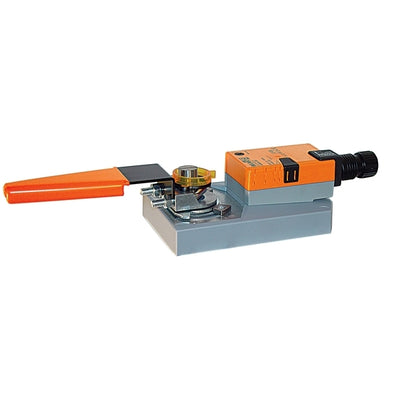

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMB24-SR-X1
Overview
Details for GMB24-SR-X1
Valve Actuator | Non-Spg | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 4.5 W
- Protection category
- IP54
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
Parts & Accessories
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,546.20 each
ZS-260 | Explosion proof housing. | Belimo
$1,875.15 each
