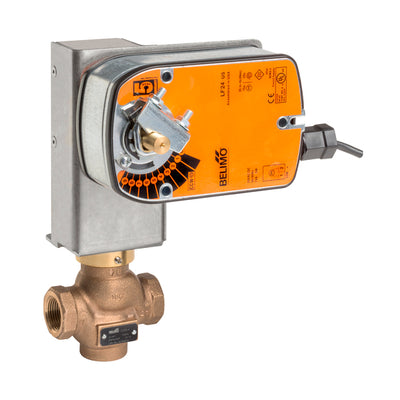

G215S-J+LF24-MFT US | Globe Valve | 0.5" | 2 Way | 4.4 Cv | w/ Spring Return | 24V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G215S-J+LF24-MFT US
Overview
Details for G215S-J+LF24-MFT US
Globe Valve | 0.5" | 2 Way | 4.4 Cv | w/ Spring Return | 24V | MFT
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic systems with variable flow. Bronze and stainless steel trim valves can be used for steam applications, depending on actuator and close-off combinations.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 4.4
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
