G215B-J+LF24-SR US | Globe Valve | 0.5" | 2 Way | 4.4 Cv | w/ Spring Return | 24V | Modulating | Belimo

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to G215B-J+LF24-SR US

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo G215B-J+LF24-SR US Documents

Datasheet More Info

Overview

Details for G215B-J+LF24-SR US

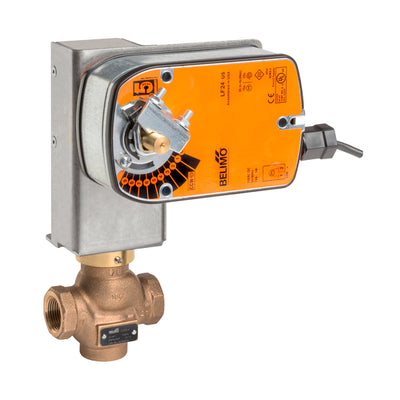

The Belimo G215B-J+LF24-SR US is a complete 2-way globe valve assembly, pre-assembled with a spring-return actuator. This combination is designed for precise control of water flow in HVAC systems.

The valve features a bronze trim for corrosion resistance and durability. The spring-return actuator ensures that the valve returns to a closed position in case of power failure, providing a safety mechanism.

This assembly is suitable for applications requiring precise flow control and reliable fail-safe operation. The modulating control input allows for precise adjustment of the flow rate.

Specifications

Item Number	G215B-J+LF24-SR US
Brand	Belimo
Spring Return	Spring Return
Valve Type	2-way Globe Valve
Valve Size	1/2"
Valve Body Material	Bronze
Pressure Class	ANSI Class 250
Cv Value	4.4
Actuator Type	Spring Return
Actuator Voltage	24VAC/DC
Control Input	Modulating (2-10VDC)
