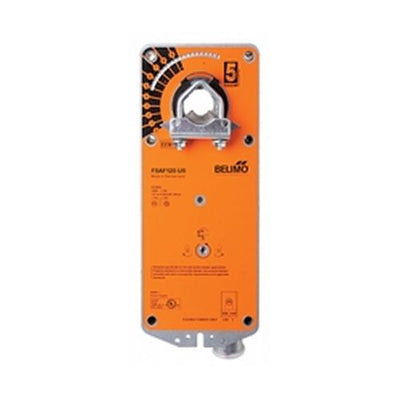

FSAF24-SR US | Fire & Smoke Actuator | 133 in-lb | Spg Rtn | 24 VAC/DC | Modulating | 1m Cable | Belimo (OBSOLETE)
Overview
Details for FSAF24-SR US
Fire & Smoke Actuator | 133 in-lb | Spg Rtn | 24 VAC/DC | Modulating | 1m Cable
Application
For proportional modulation of UL555S rated dampers in HVAC. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft or jackshaft up to 1.05” in diameter by means of its universal clamp. A crank arm and mounting brackets are available if the actuator cannot be direct coupled to the jackshaft or damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications. See Application Bulletin for details.
Specifications
Item Number | FSAF24-SR US |
Brand | Belimo |
Actuator Type | Fire and Smoke |
Control Input | Modulating |
Spring Return | Spring Return |
Torque | 180 in-lb |
Voltage | 24V |
