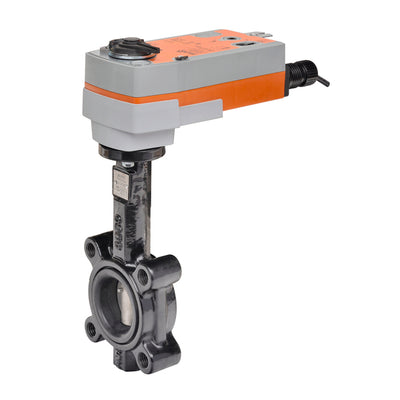

F650HD+AFRXUP-S | Butterfly Valve | 2" | 2 Way | 115 Cv | w/ Spring Return | 24-240V | On/Off | SW | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650HD+AFRXUP-S
Documents and manuals
Belimo F650HD+AFRXUP-S Documents
Overview
Details for F650HD+AFRXUP-S
Butterfly Valve | 2" | 2 Way | 115 Cv | w/ Spring Return | 24-240V | On/Off | SW
Butterfly Valve | 2" | 2 Way | 115 Cv | w/ Spring Return | 24-240V | On/Off | SW
Application
Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation.
Jobsite Note
Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 115
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 7 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
