F650HD+AFRX24-MFT-S | Butterfly Valve | 2
$699.30
Brand: BelimoSKU: F650HD+AFRX24-MFT-S
List Price
$1,554.00
$699.30
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

F650HD+AFRX24-MFT-S | Butterfly Valve | 2" | 2 Way | 115 Cv | w/ Spring Return | 24V | MFT | SW | Belimo

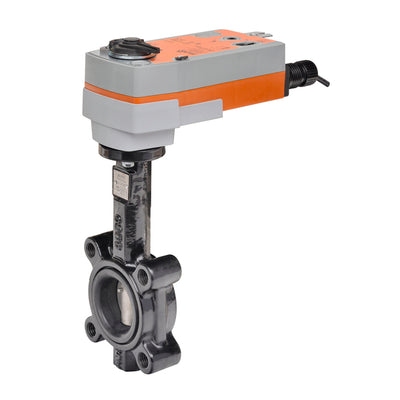

Belimo | F650HD+AFRX24-MFT-S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650HD+AFRX24-MFT-S

Documents and manuals

Belimo F650HD+AFRX24-MFT-S Documents

Overview

Details for F650HD+AFRX24-MFT-S

Butterfly Valve | 2" | 2 Way | 115 Cv | w/ Spring Return | 24V | MFT | SW

Application

Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation


Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
115
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
2" [50]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
