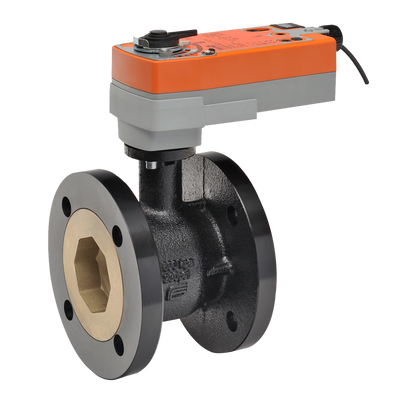

B6250S-070+AFRXUP-S N4 | CCV | 2.5" | 2 Way | 70 Cv | w/ Spg Rtn | 24-240V | On/Off | SW | NEMA 4 | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6250S-070+AFRXUP-S N4
Documents and manuals
Belimo B6250S-070+AFRXUP-S N4 Documents
Overview
Details for B6250S-070+AFRXUP-S N4
CCV | 2.5" | 2 Way | 70 Cv | w/ Spg Rtn | 24-240V | On/Off | SW | NEMA 4
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 70
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP66 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 7 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
