B348+AFRX24-MFT-S | CCV | 2
$1,057.95
Brand: BelimoSKU: B348+AFRX24-MFT-S
List Price
$2,351.00
$1,057.95
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B348+AFRX24-MFT-S | CCV | 2" | 3 Way | 37 Cv | w/ Spg Rtn | 24V | MFT | SW | Belimo

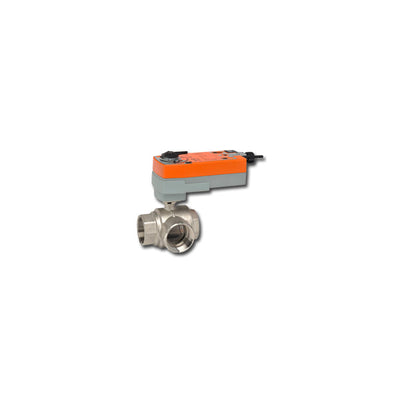

Belimo | B348+AFRX24-MFT-S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B348+AFRX24-MFT-S

Documents and manuals

Belimo B348+AFRX24-MFT-S Documents

Overview

Details for B348+AFRX24-MFT-S

CCV | 2" | 3 Way | 37 Cv | w/ Spg Rtn | 24V | MFT | SW

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
