B340+AFRB24-SR | CCV | 1.5
$686.25
Brand: BelimoSKU: B340+AFRB24-SR
List Price
$1,525.00
$686.25
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

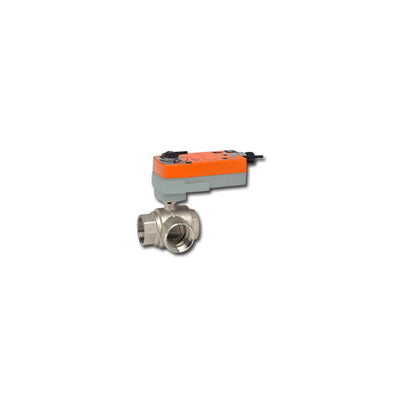

B340+AFRB24-SR | CCV | 1.5" | 3 Way | 37 Cv | w/ Spg Rtn | 24V | 2-10V | Belimo

Belimo | B340+AFRB24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B340+AFRB24-SR

Documents and manuals

Belimo B340+AFRB24-SR Documents

Overview

Details for B340+AFRB24-SR

CCV | 1.5" | 3 Way | 37 Cv | w/ Spg Rtn | 24V | 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
5.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
95 s / 90B0
Voltage AC/DC
AC/DC 24 V
