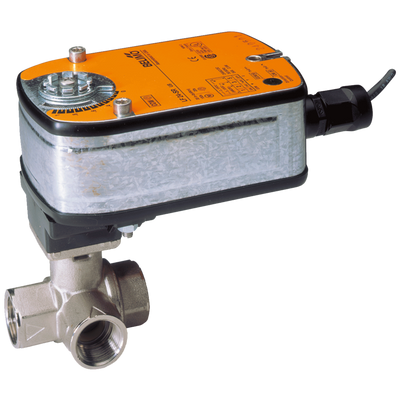

B315L+LF24 US | Ball Valve | 0.5" | 3 Way | 6.4 Cv | w/ Spg Rtn | 24V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B315L+LF24 US
Documents and manuals
Belimo B315L+LF24 US Documents
Overview
Details for B315L+LF24 US
Ball Valve | 0.5" | 3 Way | 6.4 Cv | w/ Spg Rtn | 24V | On/Off
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 6.4
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
