B308+TFRX24-S | CCV | 0.5
$347.85
Brand: BelimoSKU: B308+TFRX24-S
List Price
$773.00
$347.85
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B308+TFRX24-S | CCV | 0.5" | 3 Way | 0.46 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

Belimo | B308+TFRX24-S

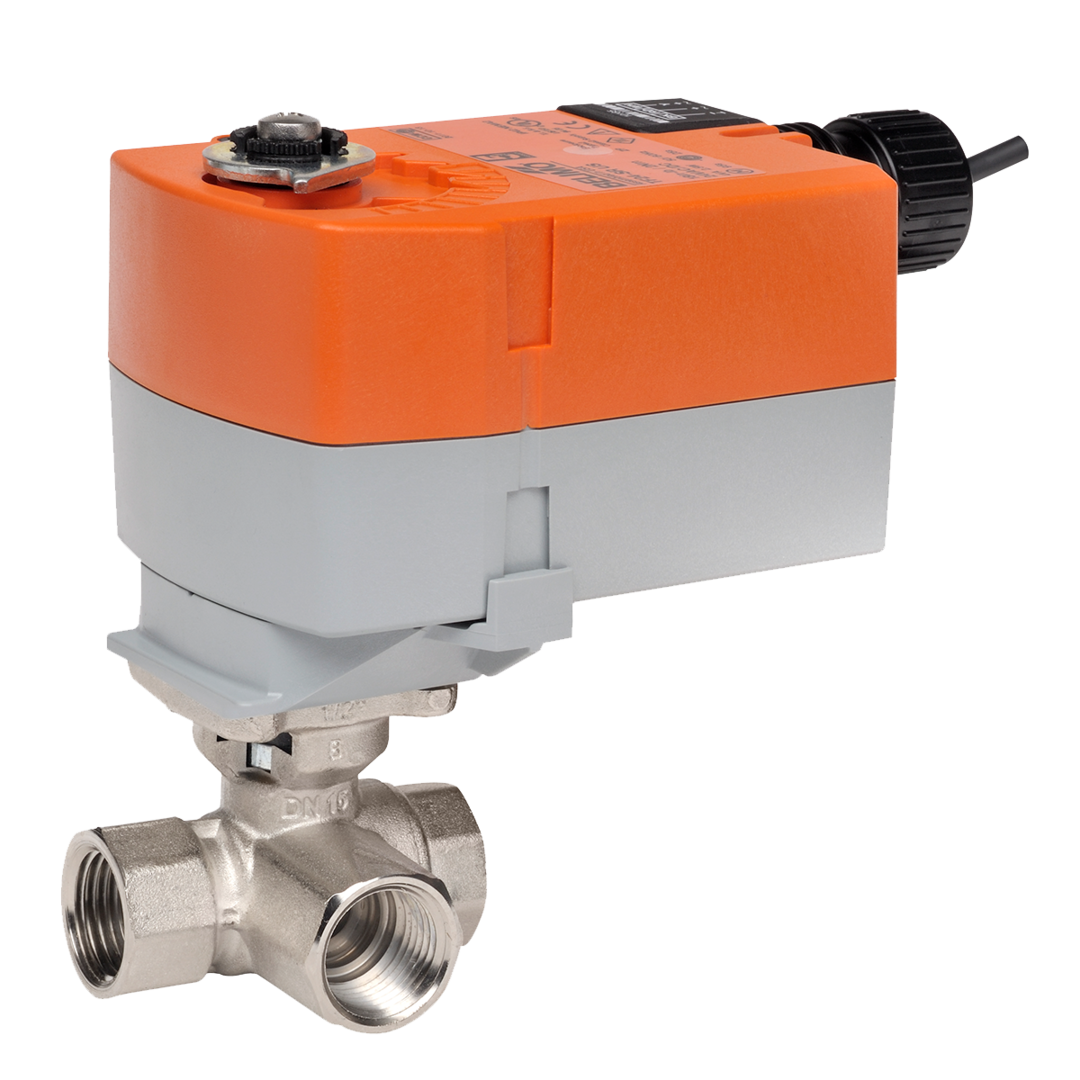

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B308+TFRX24-S

Documents and manuals

Belimo B308+TFRX24-S Documents

Overview

Details for B308+TFRX24-S

CCV | 0.5" | 3 Way | 0.46 Cv | w/ Spg Rtn | 24V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
75B0
Cv
0.46
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2 W
Running Time (Fail-safe)
<75 s
Running Time (Motor)
75 s
Voltage AC/DC
AC/DC 24 V
