B261+AFRBUP | CCV | 2.5

$842.85

Brand: BelimoSKU: B261+AFRBUP

List Price
~~$1,873.00~~

$842.85

Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B261+AFRBUP | CCV | 2.5" | 2 Way | 60 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

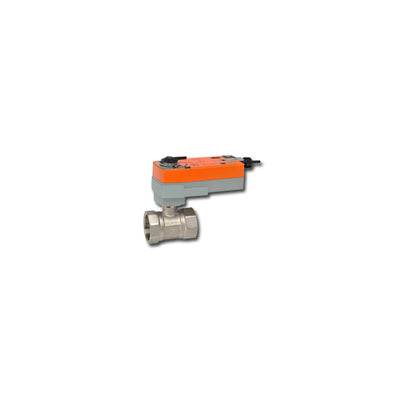

Belimo | B261+AFRBUP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to B261+AFRBUP

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo B261+AFRBUP Documents

Datasheet Installation Instructions More Info

Overview

Details for B261+AFRBUP

CCV | 2.5" | 2 Way | 60 Cv | w/ Spg Rtn | 24 -240V | On/Off

CCV | 2.5" | 2 Way | 60 Cv | w/ Spg Rtn | 24 -240V | On/Off

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 60
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 2.5" [65]
Actuator specifications
Actuator Type: Spring return
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 3.5 W
Power Consumption (Running): 7 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC 24...240 V / DC 24...125 V
