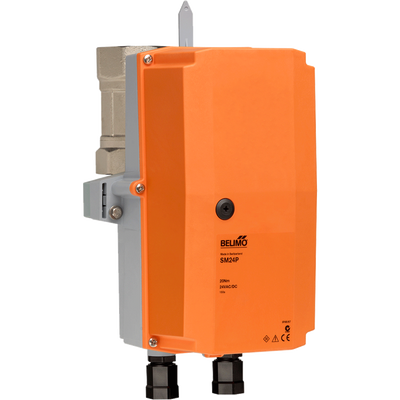

B254+AFRX24-S N4 | CCV | 2" | 2 Way | 240 Cv | Spring Return | 24V | On/Off | NEMA 4 | SW | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B254+AFRX24-S N4
Documents and manuals
Belimo B254+AFRX24-S N4 Documents
Overview
Details for B254+AFRX24-S N4
CCV | 2" | 2 Way | 240 Cv | Spring Return | 24V | On/Off | NEMA 4 | SW
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 240
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP66 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
