B249+AFRXUP-S | CCV | 2" | 2 Way | 46 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW | Belimo

Belimo | B249+AFRXUP-S

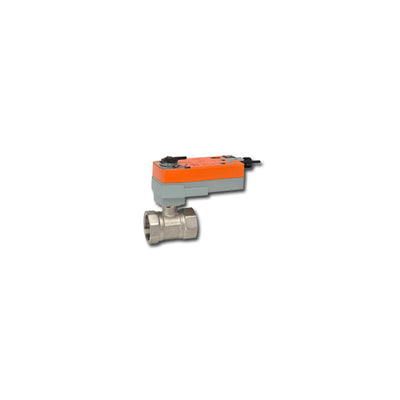

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B249+AFRXUP-S

Documents and manuals

Belimo B249+AFRXUP-S Documents

Overview

Details for B249+AFRXUP-S

CCV | 2" | 2 Way | 46 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
46
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
