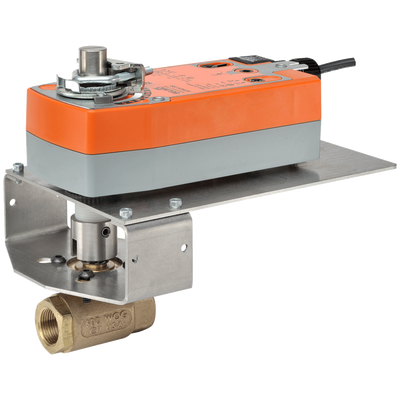

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents

Overview

Details for B225VS+AFX24-MFT-X1

Ball Valve | 1" | 2 Way | 68 Cv | w/ Spg Rtn | 24V | MFT

Live-load packing set
Stainless steel ball & stem
Blow-out proof stem design

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionality which facilitates the use of various control input.

Up to 35 psi steam
½” - 600 PSIG WOG, Cold Non-Shock.
Federal Specification: WW-V-35C,Type II Composition: BZ Style: 3

Specifications

Item Number	B225VS+AFX24-MFT-X1
Brand	Belimo
Control Input	Belimo MFT (Modulating)
Control Valves Type	Ball Valve
Cv / GPM	68 Cv
Spring Return	Spring Return
Valve Size	1" - 2 Way
Voltage	24V
