B224VS+AFBUP-X1 | Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

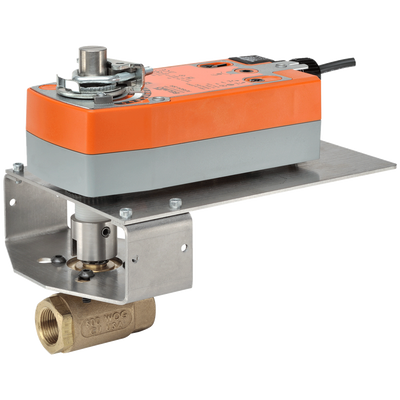

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents

Overview

Details for B224VS+AFBUP-X1

Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24 -240V | On/Off

Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

This valve is designed with MFT functionality which facilitates the use of various control input.

Specifications

Item Number	B224VS+AFBUP-X1
Brand	Belimo
Control Input	On/Off
Control Valves Type	Ball Valve
Cv / GPM	43 Cv
Spring Return	Spring Return
Valve Size	1" - 2 Way
Voltage	24-240V
