B220B+TFRB24-S | CCV | 0.75" | 2 Way | 14 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

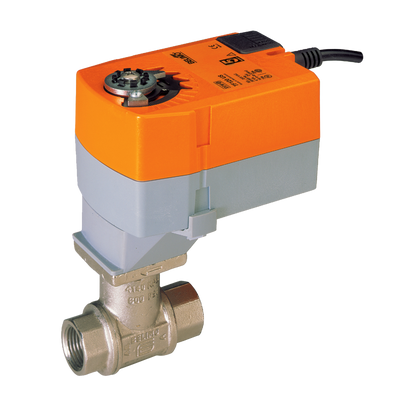

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B220B+TFRB24-S
Documents and manuals
Belimo B220B+TFRB24-S Documents
Overview
Details for B220B+TFRB24-S
CCV | 0.75" | 2 Way | 14 Cv | w/ Spg Rtn | 24V | On/Off | SW
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flowSpecifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 75B0
- Cv
- 14
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP42 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 2 W
- Running Time (Fail-safe)
- <75 s
- Running Time (Motor)
- 75 s
- Voltage AC/DC
- AC/DC 24 V
