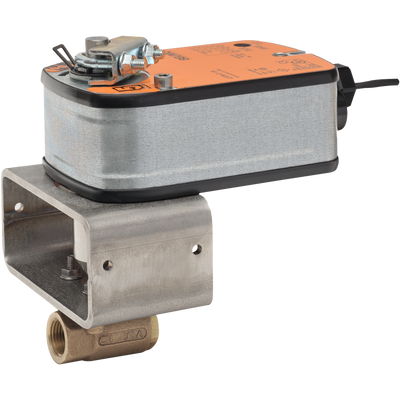

B2050VSS-15+LF120 US | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 120V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2050VSS-15+LF120 US
Documents and manuals
Belimo B2050VSS-15+LF120 US Documents
Overview
Details for B2050VSS-15+LF120 US
Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 120V | On/Off
Product Features
Live-load packing set, Stainless steel ball & stem, Blow-out proof stem design
Application
These threaded valves are designed to provide modulating or two position control of hot or chilled water and saturated steam systems under 50 psi. Typical applications include reheat coils, VAV terminal control, unit ventilators, and air handlers, especially in areas which have minimum profile requirements.
Up to 50 psi steam
1/2” - 200 PSIG WOG, Cold Non-Shock
Federal Specification: WW-V-35C, Type II
Composition: SS
Style: 3
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 90B0 rotation A b AB open ccw B b AB open cw
- Cv
- 15
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 5.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 120 V
