ARB24-SR | Valve Actuator | Non-Spg | 24V | Modulating | Belimo
Overview
Details for ARB24-SR

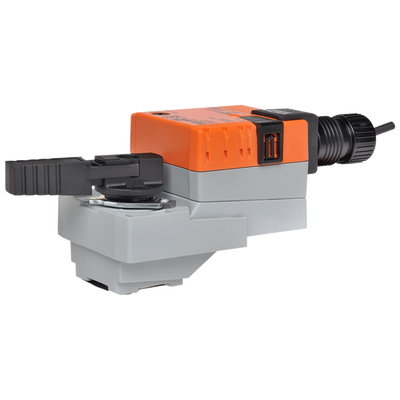

Valve Actuator | Non-Spg | 24V | Modulating
Technical Data
Power Supply: 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running: 2.5 W
Power Consumption Holding: 0.4 W
Transformer Sizing: 5 VA (class 2 power source)
Electrical Connection: 3ft [1m], 18 GA plenum cable with 1/2” conduit connector
Overload Protection: electronic thoughout 0° to 90° rotation
Operating Range Y: 2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω, 1/4 W resistor)
Input Impedance: 100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA
Feedback Output U: 2 to 10 VDC
Angle of Rotation: 90°
Direction of Rotation (Motor): reversible with built-in switch
Position Indication: integrated into handle
Manual Override: external push button
Running Time (Motor): 90 sec
Ambient Temperature Range: -22°F to 122°F [-30°C to 50°C]
Storage Temperature Range: -40°F to 176°F [-40°C to 80°C]
Housing: NEMA 2, IP54
Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC
Noise Level (Motor): <45 dB (A)
Servicing: maintenance free
Quality Standard: ISO 9001
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 90
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.4 W
- Power Consumption (Running)
- 2.5 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
