AFX24-SR | Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating | Belimo

$429.75

Brand: BelimoSKU: AFX24-SR

List Price
~~$955.00~~

$429.75

Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

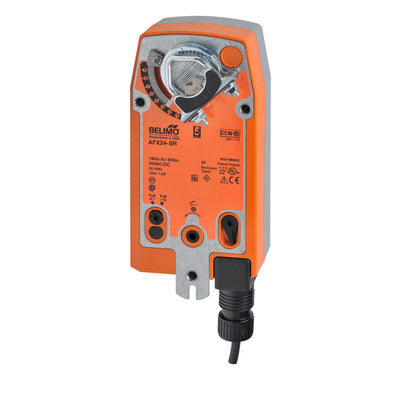

AFX24-SR | Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating | Belimo

Belimo | AFX24-SR

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AFX24-SR

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo AFX24-SR Documents

Datasheet Installation Instructions More Info

Overview

Details for AFX24-SR

Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two AF's can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.

Specifications

Actuator Type: Spring return
Angle of Rotation: 95
Control Type: DC 2...10 V
Degree of Protection: 852
Electrical Connection: cable
Power Consumption (Holding): 3 W
Power Consumption (Running): 5.5 W
Protection category: IP54
Running Time (Fail-safe): <20 s
Running Time (Motor): 95 s / 90B0
Torque: 180 in-lb [20 Nm]
Voltage AC/DC: AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Midwest Supply Us

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $507.60 each

Belimo Z-SF Base plate extension, for NF..A / SF..A | Midwest Supply Us

Z-SF | Base plate extension, for NF..A / SF..A | Belimo (OBSOLETE) $280.00 each

Belimo ZS-300-C2 3/4" shaft adaptor for ZS-300(-5). | Midwest Supply Us

ZS-300-C2 | 3/4" shaft adaptor for ZS-300(-5). | Belimo $235.80 each

Belimo ZS-300-C1 1/2" shaft adaptor | standard wtih ZS-300(-5). | Midwest Supply Us

ZS-300-C1 | 1/2" shaft adaptor | standard wtih ZS-300(-5). | Belimo $235.35 each

Belimo ZS-300-5 NEMA 4X | 316L stainless steel enclosure. | Midwest Supply Us

ZS-300-5 | NEMA 4X | 316L stainless steel enclosure. | Belimo $1,870.65 each

Belimo ZS-300 NEMA 4X | 304 stainless steel enclosure. | Midwest Supply Us

ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo $1,546.20 each
