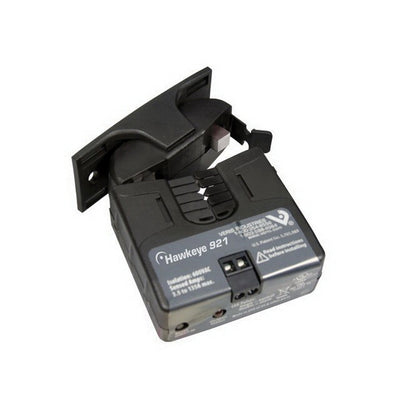

H921 | Current Transducer | Split-Core | 0-120A | 4-20mA | Veris
Hawkeye 0 to 30/60/120 A Input 4 to 20 mA DC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H921
Overview
Details for H921
The Hawkeye H921 provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.
- Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- Factory calibrated switch-selectable ranges for high resolution and installation ease
- Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
- Removable mounting bracket for installation flexibility
- Added flexibility - bracket on H921 can be installed in three different configurations
- 100% solid-state no moving parts to fail
- 30 mA at 12 to 30 VDC sensor power
Specifications
| Item Number | H921 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Accuracy | ±2% of F.S. above 10% of F.S. |
| Current Measurement Range | 0 - 30 A | 0 - 60 A | 0 - 120 A |
| Current Sensor type | Current Transducer; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H921 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.8" (21 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | 4 - 20 mA |
| Outputs | Analog output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX21 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Sensor (Hawkeye) |
| Warranty | 5 years |
