A/SCTA2-50 | Current Sensor (Split Core) | Loop Powered | 4-20 mA Average Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A | ACI

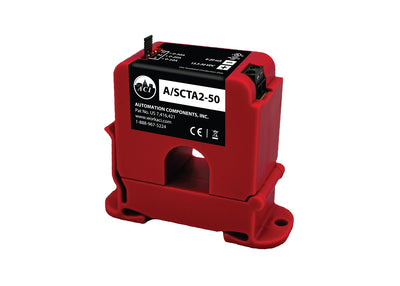

Analog Current Sensor, 4-20mA, DIN Rail, Split Core, 0-10, 0-20, 0-50 Amp (Default)
Documents and manuals
ACI A/SCTA2-50 Documents
Overview
Details for A/SCTA2-50
A/SCTA2-50 | Current Sensor (Split Core) | Loop Powered | 4-20 mA Average Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A
The 4-20 mA Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment. The “Average” style current sensors should be used in applications where the Sinusoidal waveform has no distortion or noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb, heating element as well as any single speed linear load. Note that the “True RMS” sensors are able to be used in all applications since the “True RMS” current sensors provide the best overall accuracy and should be used in applications which includes Variable Frequency Drives, Switching Power Supplies, Computers and Data Centers, Electronic Ballasts, SCR’s, and Variable Speed Loads. For currents monitored above 250 Amps, the CTA2-5 and SCTA2-5 are ideal for use with a step down Ratio:5A Output CT (Current Transformer) in stepping down current in a monitored conductor to a proportional 0 to 5A output signal. The current sensors are available in both solid and split-core versions which also includes a Patented (Pat. No. US 7,416,421) 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues like dust and moisture may be of concern. The split-core version of the current sensors work great in retrot applications and for use on service technicians vehicles since one or two parts will work in most applications and can be easily installed without disconnecting any wires.
Applications
Load Trending, Basic Power Monitoring, Electronic Ballasts, Computers/Data Centers, Industrial, Variable Speed Loads, Pumps, Compressors, Fans, Preventative Maintenance, LEED, Project Justication (ROI) Process Control, Solid State Environments (SCR’s)
Specifications
Item Number | A/SCTA2-50 |
Brand | ACI |
Current Core | Split Core |
Sensor | Current Sensor |
