8910DP12V02Y248 | Definite Purpose Contactor Type DP, 20A, 2-Poles, 110 VAC 50HZ, 120 VAC 60Hz | Square D
$56.70
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: 8910DP12V02Y248
List Price
$168.00

Web Price:

$56.70
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

8910DP12V02Y248 | Definite Purpose Contactor Type DP, 20A, 2-Poles, 110 VAC 50HZ, 120 VAC 60Hz | Square D

Square D | 8910DP12V02Y248

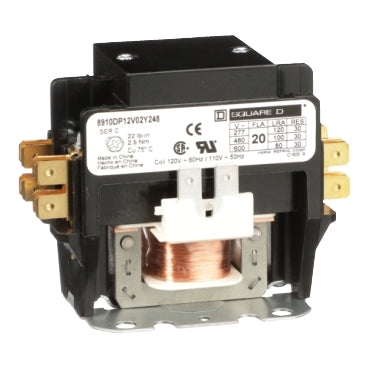

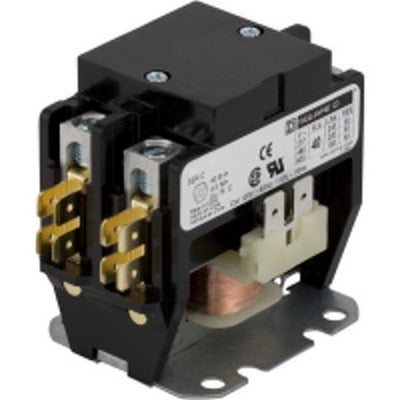

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DP12V02Y248
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Square D 8910DP12V02Y248 Documents

Datasheet

Overview

Details for 8910DP12V02Y248

Definite Purpose Contactor Type DP, 20A, 2-Poles, 110 VAC 50HZ, 120 VAC 60Hz

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 20 ampere and a resistive rating of 30 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. This device is supplied with a cover. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Specifications

Product or Component Type
Definite Purpose Contactor
Line Rated Current
20 A
Number of Poles
2P
pole contact composition
2 NO
Range of Product
DP
provided equipment
Terminal cover
Maximum Horse Power Rating
1 hp 115 V AC;1 phase;2 hp 230 V AC;1 phase
locked rotor rated current
100 A 460 V AC;80 A 575 V AC;120 A 277 V AC
[Ue] rated operational voltage
600 V AC
[Uc] control circuit voltage
120 V AC 60 Hz;110 V AC 50 Hz
Phase
1 phase
Electrical Connection
Binder head;Quick connect terminals
Product Certifications
UL Recognized;CSA
Category
21352-8910 DP 12
Discount Schedule
CP1B
GTIN
785901397182
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.30 in (5.842 cm)
Package 1 Width
2.70 in (6.858 cm)
Package 1 Length
3.50 in (8.89 cm)
Package 1 Weight
10.08 oz (285.763 g)
Warranty
18 months
