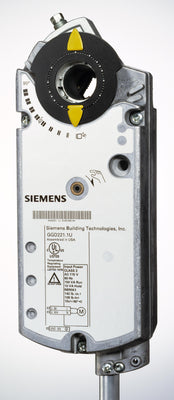

GGD121.1U | Damper Actuator | Spring Return | 24 VAC | On/Off | 142 lb-in | Siemens

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GGD121.1U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens GGD121.1U Documents

Datasheet Installation Instructions

Overview

Details for GGD121.1U

Damper Actuator | Spring Return | 24 VAC | On/Off | 142 lb-in

OpenAir™ GGD Series Electric Damper Actuator, rotary, spring return, 142 lb-in (16 Nm), 24 Vac, 2-position control, 15 sec run time, Fire/Smoke

Application

This actuator is used for the control of dampers requiring up to 142 lb-in (16 Nm) driving torque. It is intended for control of UL listed smoke control dampers or combination fire/smoke HVAC dampers. This actuator is designed to meet the 1999 revisions to the UL 555S and AMCA 500-D specifications. Minimum stall torque 350 lb-in.

Specifications

Item Number	GGD121.1U
Brand	Siemens
Actuator Type	Damper
Control Input	On/Off
End Switch
Spring Return	Spring Return
Torque	142 lb-in
Type	Damper Actuator
Voltage	24 VAC
